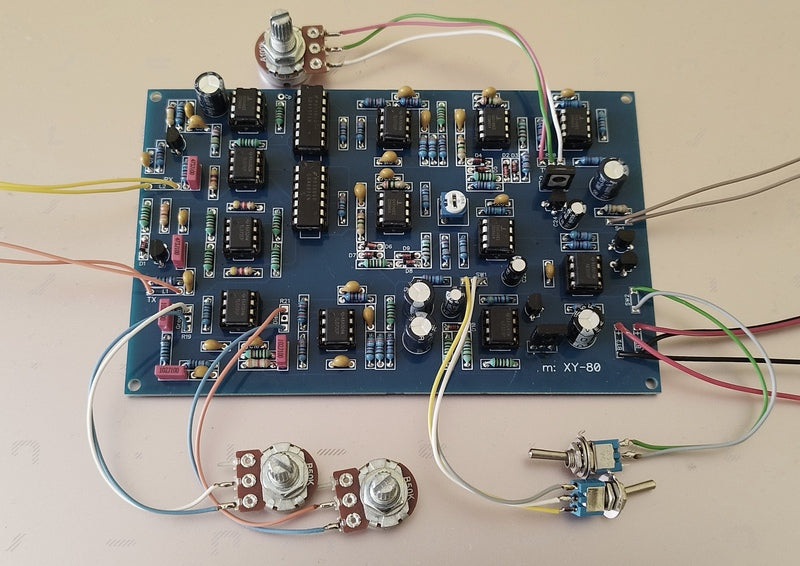

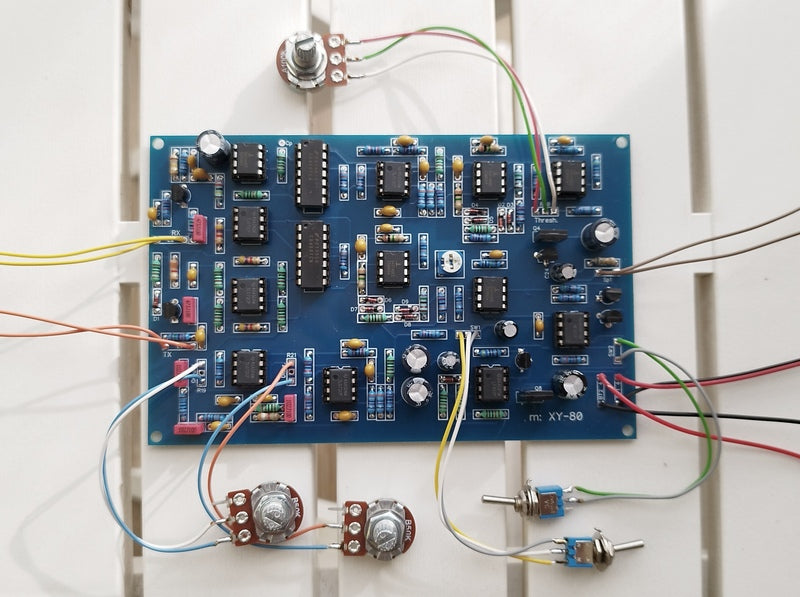

VLF metal detector Magnum (XY-80 Project)

Attention! This is not a real device - only project for direct manufacturing (PCB and assembling)
After purchasing this product, the ZIP of the project files will be send to your email within up to 12 hours (normally 1-2 hours).

VLF metal detector Magnum
Model: XY-80
Type of the components: THT
Number of layers: 2

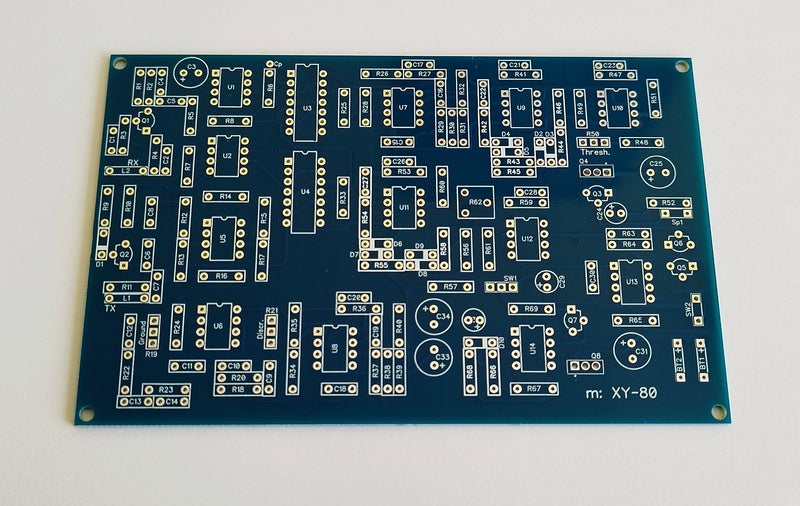

Dimension of the PCB: 140 x 89 mm

The ZIP file contain аll needed files for creating the PCB and assembling:
Gerber
Drill
BOM
Pick and Place
High resolution schematic
List of the components
Short manual

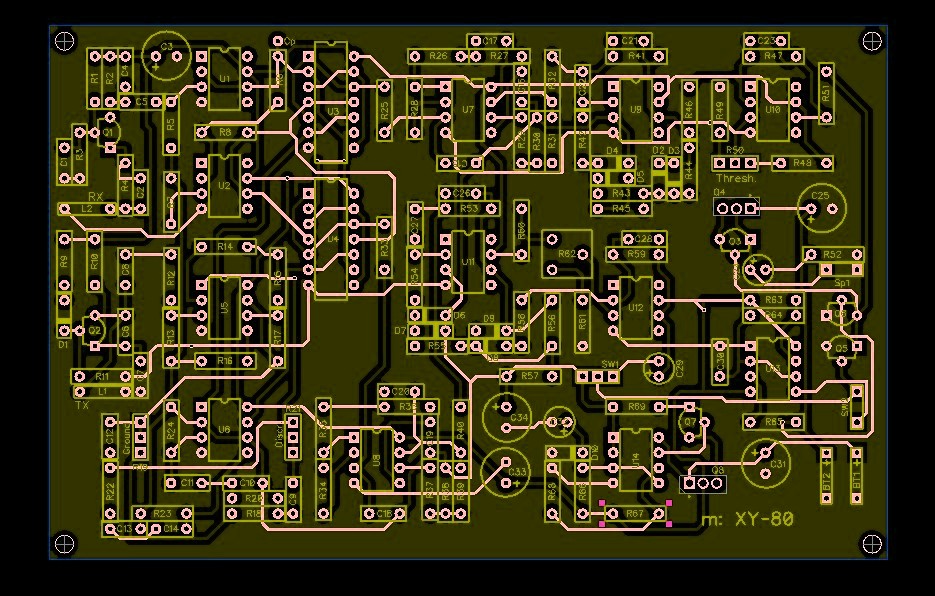

PCB files for printing (top and bottom)

________________________________

You can use this device for:

General purpose metal detector

Searching on the beach

Underwater metal detector

Searhing old ferrous metals

Searhing meteorites

Searhing gold (nugget)

Magnum is one of the most popular metal detectors in the past. It shows good sensitivity, especially for searching small metal objects, ferrous/non ferrous metals discrimination and suppressing the ground effect.

Characteristics

Model: XY-80

Principle: VLF

Mode: dynamic with automatic reset (need moving over the object)

Ferrous/non ferrous metals discrimination

Search coils: DD or Omega - description in the manual

Indication: sound (headphones or speaker)

Power: 18V (>12V) and 9V batteries

Consumption: ~ 50 mA

PCB size: 140 x 89 mm
