UFO/Earth anomalies detector (PROJECT)

Attention! This is not a real device - only project for dir ect manufacturing (PCB and assembling)

After purchasing this product, the ZIP of the project files will be send to your email within up to 24 hours.

You can purchase the OPTIONS (please select):

 - PROJECT FILES - All needed files for creating the PCB and assembling: Gerber, Drill, BOM, Pick and Place, schematic, List of the components, Short manual.

 - PROJECT FILES + EDITABLE FILES - all project files + editable files for making changes in the schematic and PCB (DipTrace format)

UFO/Earth anomalies detector

Model: UD-400

Type of the components: THT

Number of layers: 2

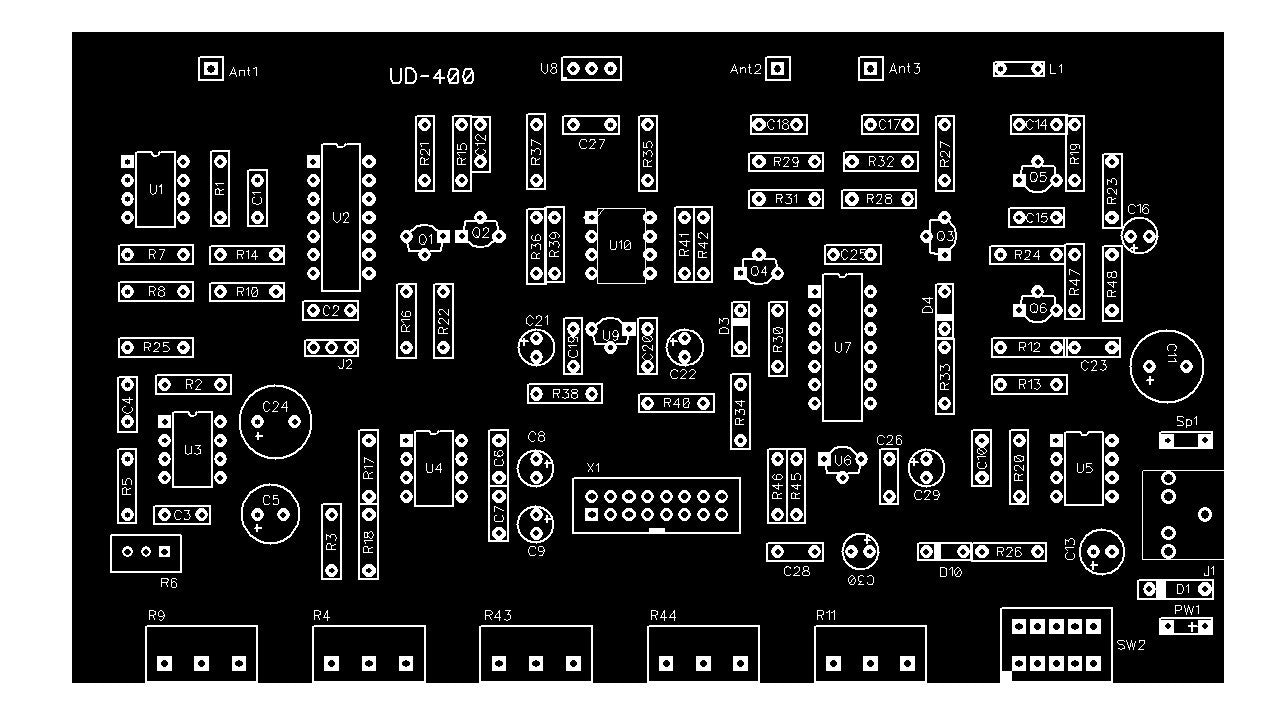

Dimension of the PCB: 158 x 89 mm

The ZIP file contain files:

Gerber

Drill

BOM

Pick and Place

High resolution schematic

List of components

Short manual

PCB files for printing (top and bottom)

UFO/Earth anomalies detector

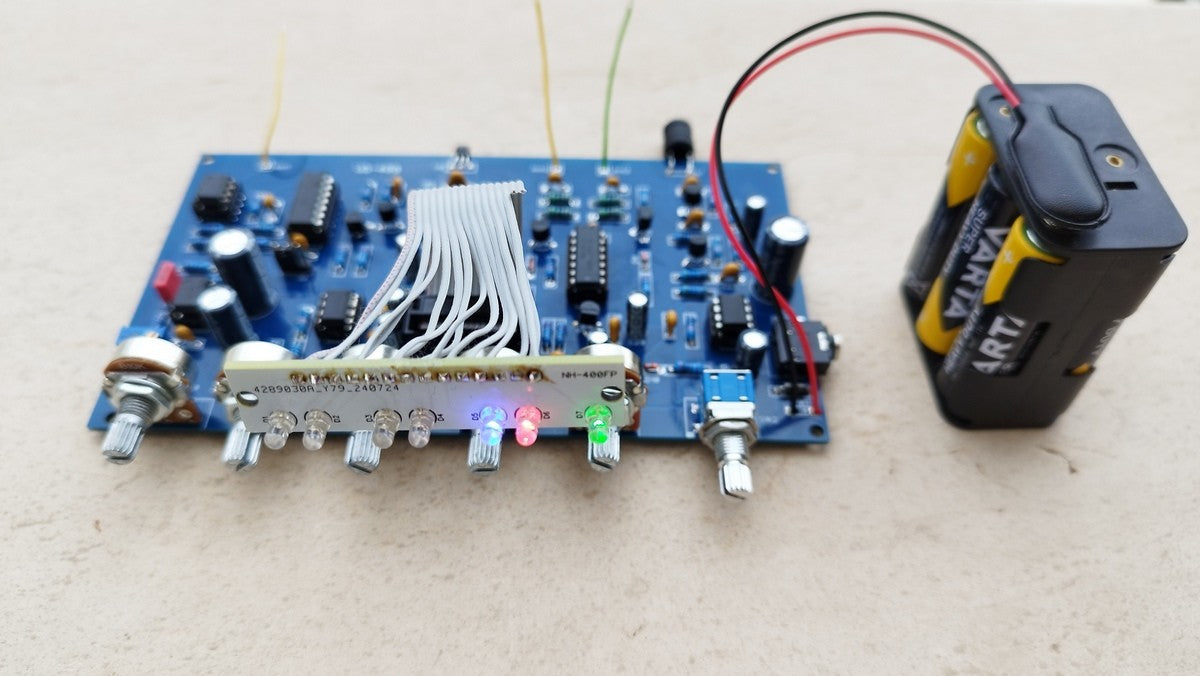

This device can be used by by enthusiasts for searching UFOs and geo-anomalies. It consist 4 detectors:

Ion detector

Indication: LED for positive and negative Ions

Electromagnetic field (EMF) detector

Indication: only sound listen

Electrostatic detector

Indication: LED for positive and negative charges, not react to EMF

Magnetic detector

Indication: LED for North/South pole, independent adjusting the threshold of North/South pole

Model: UD-400

Power: 9V DC battery (not included)

Low battery indication

3 antennas: can be used telescopic or normal rod

Board size: 158 x 89 mm
