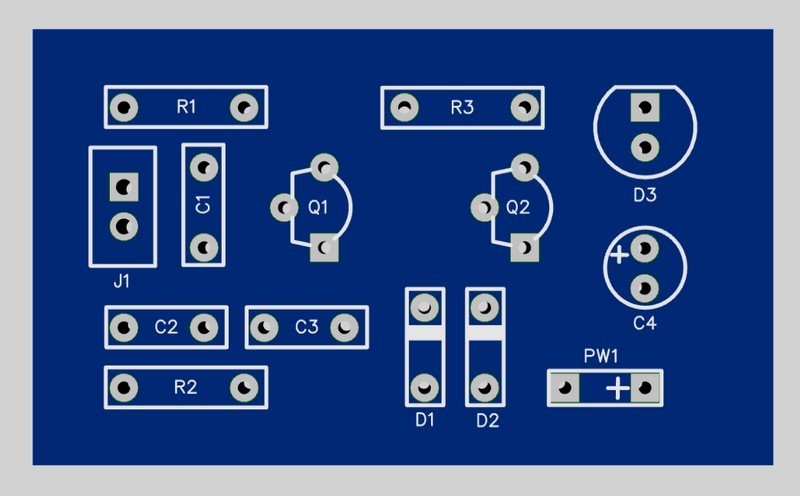

Quartz tester (project)

Attention! This is not a  real device - only project for direct manufacturing (PCB and assembling)

After purchasing this product, the ZIP of the project files will be send to your email within up to 24 hours.

You can purchase the OPTIONS (please select):

 - PROJECT FILES - All needed files for creating the PCB and assembling: Gerber, Drill, BOM, Pick and Place, schematic, List of the components, Short manual.

 - PROJECT FILES + EDITABLE FILES - all project files + editable files for making changes in the schematic and PCB (DipTrace format)

Qartz tester

Model: 00453

Type of the components: THT

Number of layers: 1

Dimension of the PCB: 47 x 28 mm

The ZIP file contain files:

Gerber

Drill

BOM

Pick and Place

High resolution schematic

PCB files for printing (top and bottom)

_________________________________

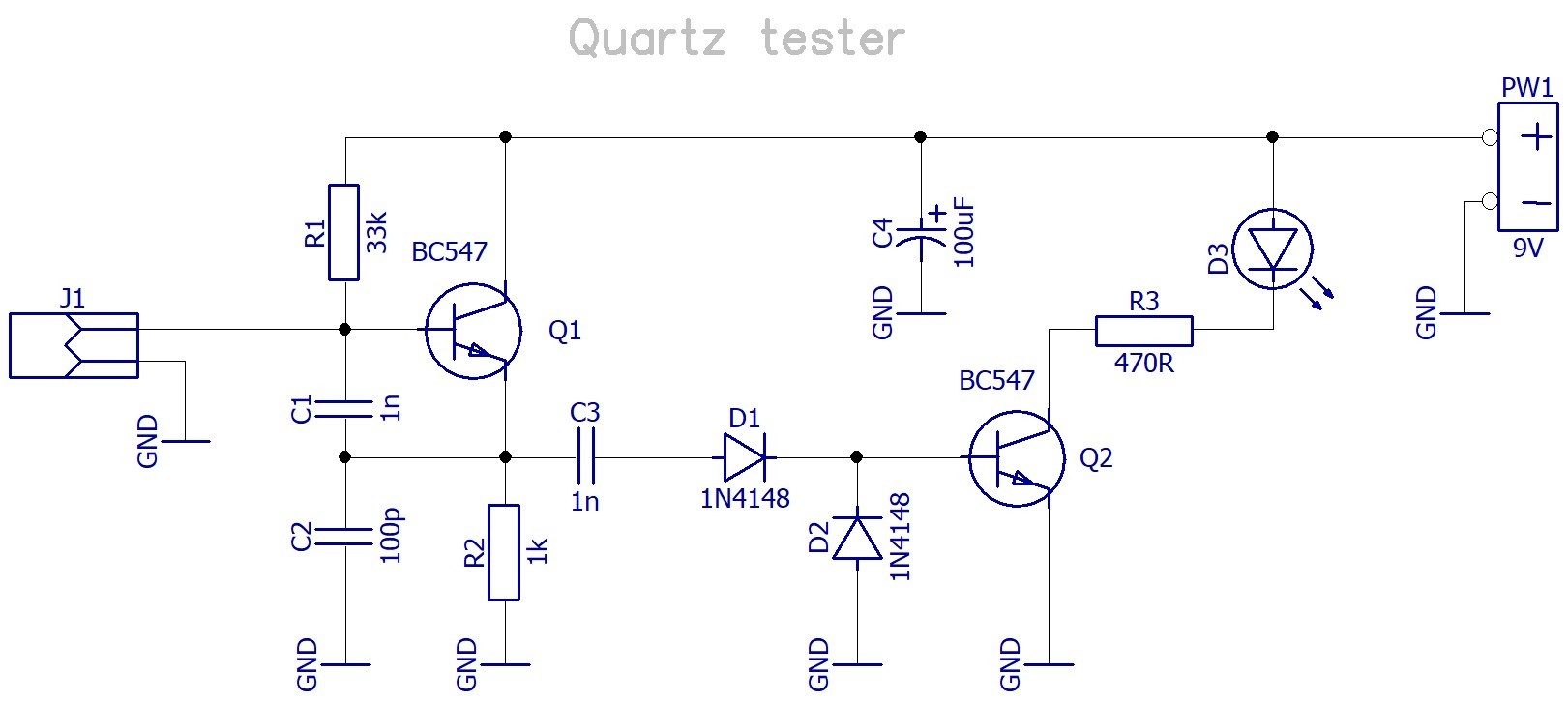

Quartz crystal tester

   - Indication: LED

   - Power: 9V battery

   - Dimensions of the PCB: 47 x 28 mm
