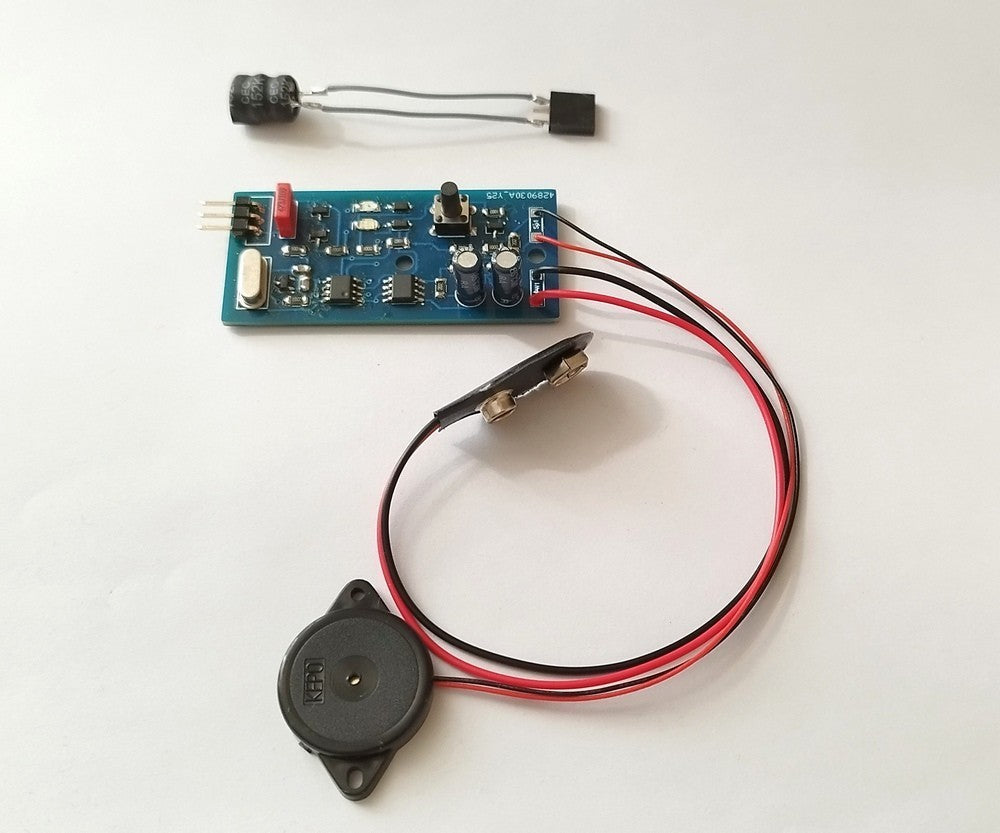

Pinpointer with discrimination (NH-60s Project, SMD)

Attention! This is not a  real device - only project for direct manufacturing (PCB and assembling)

After purchasing this product, the ZIP of the project files will be send to your email within up to 24 hours.

You can purchase the OPTIONS (please select):

 - PROJECT FILES - All needed files for creating the PCB and assembling: Gerber, Drill, BOM, Pick and Place, schematic, List of the components, Short manual.

 - PROJECT FILES + EDITABLE FILES - all project files + editable files for making changes in the schematic and PCB (DipTrace format)

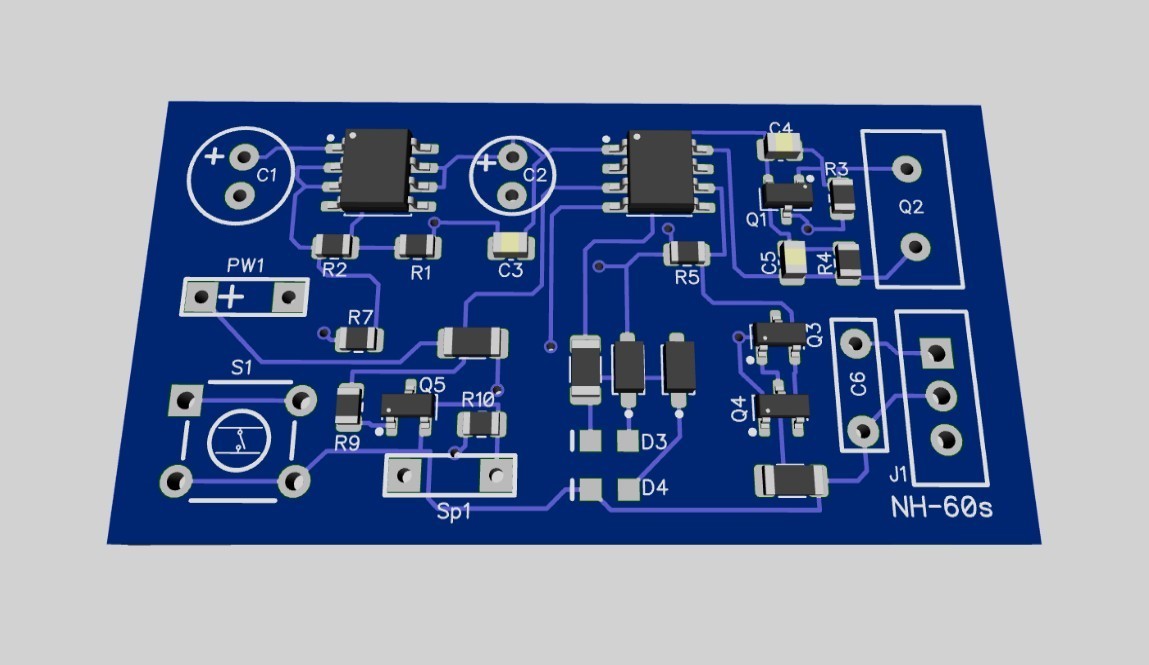

Pinpointer with discriminator

Type of the components: SMD

Number of layers: 2

Dimension of the PCB: 66 x 28 mm

The ZIP file contain files:

Gerber

Drill

BOM

Pick and Place

High resolution schematic

List of components

Short manual

PCB files for printing (top and bottom)

_________________________________

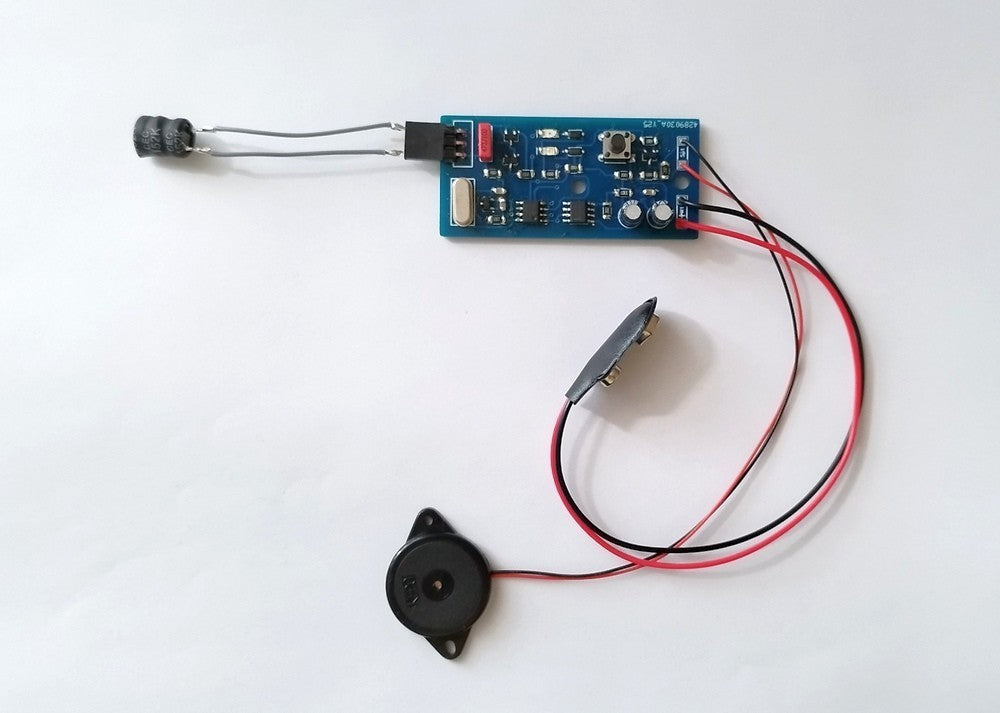

Improved more stable version, Smaller PCB, coil with connector

Characteristics:

Model: NH-60s

   - Indication: sound and LEDs  (ferrous/non-ferrous metals)

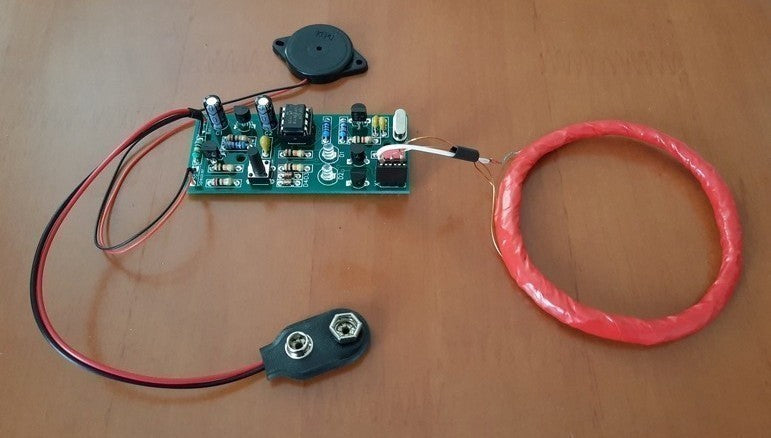

   - Dept for coin:  2 cm with ferrite coil, 4 cm with round coil

   - Voltage: 9V

   - Consumption: 4 mА in wait mode, 18 mA with indication

   - Dimensions of the PCB: 65 x 28 mm
