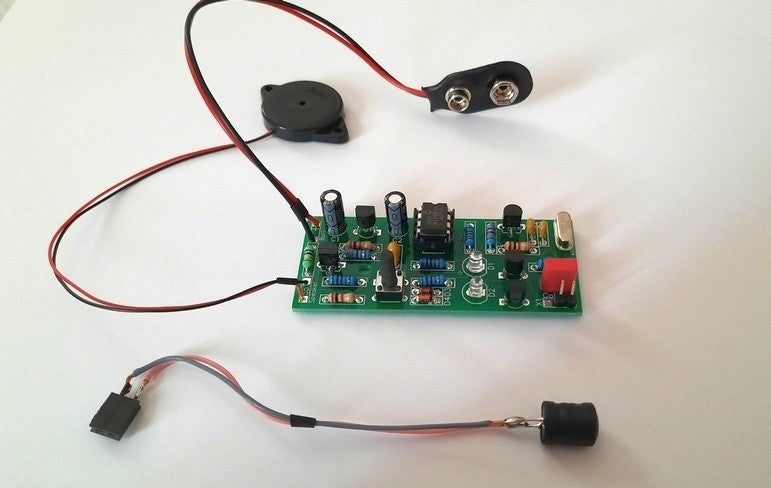

Pinpointer with discrimination (NH-60 Project)

Attention! This is not a  real device - only project for direct manufacturing (PCB and assembling)

After purchasing this product, the ZIP of the project files will be send to your email within up to 12 hours (normally 1-2 hours).

Pinpointer with discriminator

Model: NH-60

Type of the components: THT

Number of layers: 2

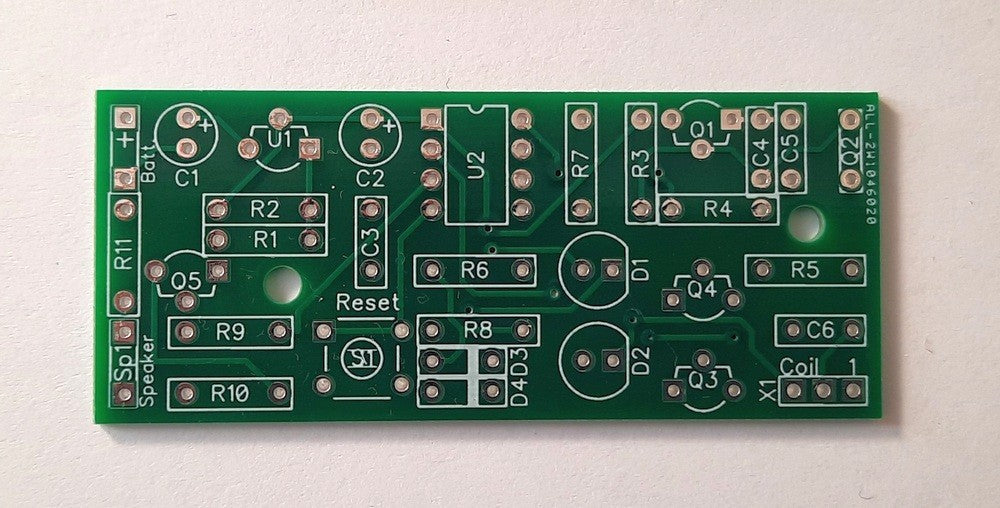

Dimension of the PCB: 66 x 28 mm

The ZIP file contain аll needed files for creating the PCB and assembling:

Gerber

Drill

BOM

Pick and Place

High resolution schematic

List of components

Short manual

PCB files for printing (top and bottom)

_________________________________

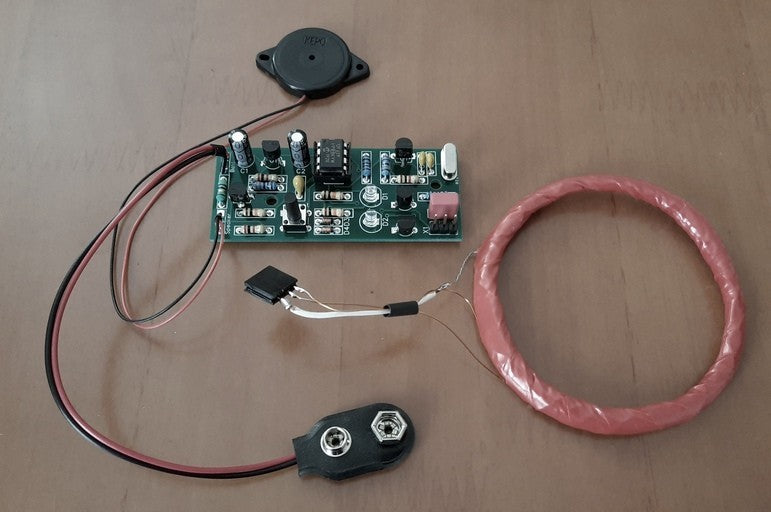

Improved more stable version, Smaller PCB, coil with connector

Characteristics:

Model: NH-60

   - Indication: sound and LEDs  (ferrous/non-ferrous metals)

   - Coil: 6 cm round coil

   - Depth for coin: ~4 cm

   - Voltage: 9V

   - Consumption: 4 mА in wait mode, 18 mA with indication

   - Dimensions of the PCB: 65 x 28 mm
