PI metal detector (XY-90 Project)

Attention! This is not a real device - only project for direct manufacturing (PCB and assembling)

After purchasing this product, the ZIP of the project files will be send to your email within up to 12 hours (normally 1-2 hours).

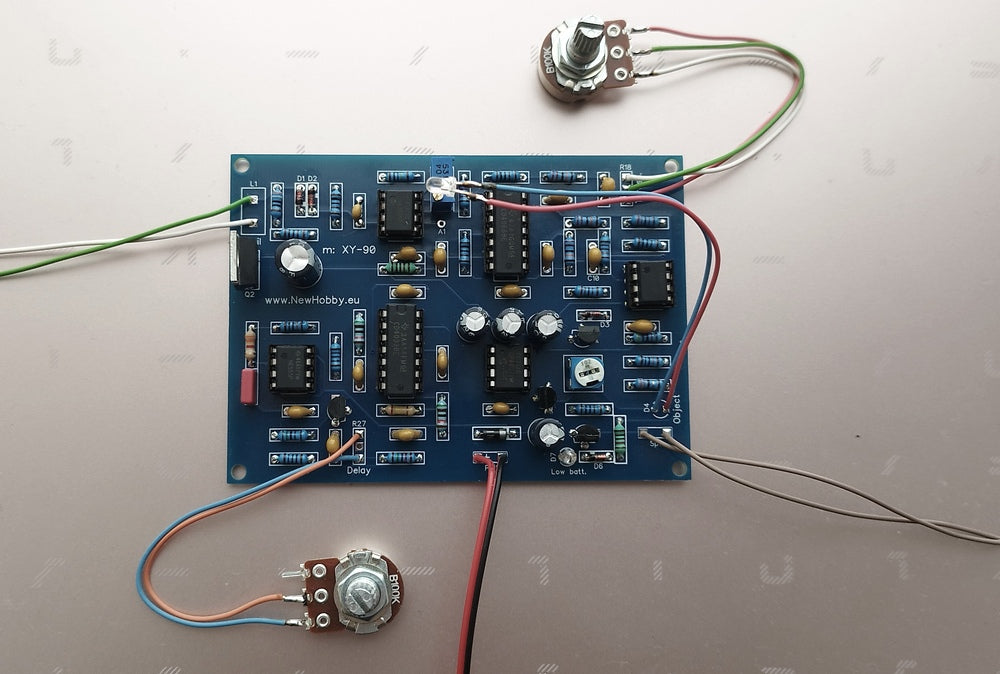

Pulse induction metal detector

Model: XY-90

Type of the components: THT

Number of layers: 2

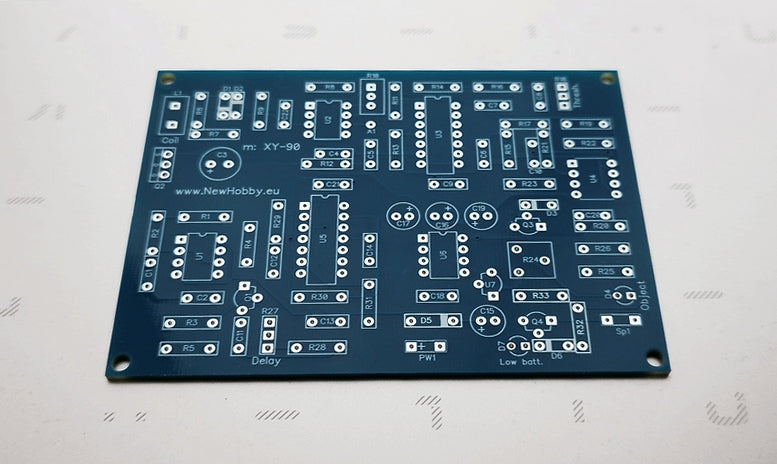

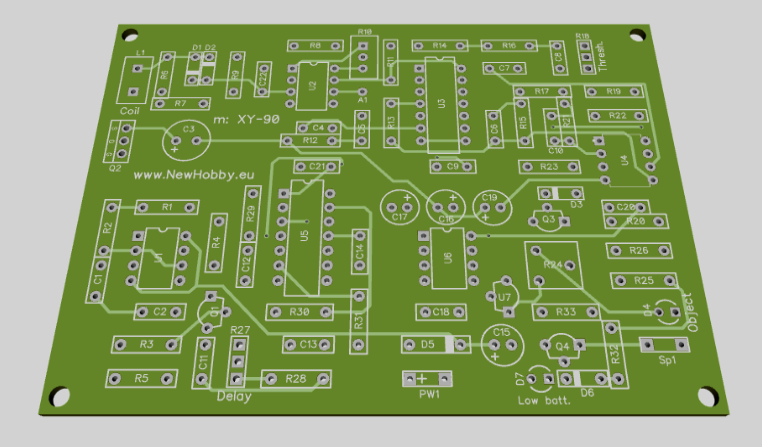

Dimension of the PCB: 99 x 71 mm

The ZIP file contain аll needed files for creating the PCB and assembling:

Gerber

Drill

BOM

Pick and Place

High resolution schematic

List of components

Short manual

PCB files for printing (top and bottom)

_________________________________

Low reaction for stones, consists iron and ferrous oxides

Possibility to use small, normal and big coils

You can use this metal detector for:

General purpose metal detector

Searching on the beach

Underwater metal detector

Searching meteorites

Searching gold (nugget)

Detector for deep searching

Characteristics:

Model: XY-90

Principle: Pulse Induction

Mode: need motion over the ground

Search coil: description in the manual

Sensitivity: 20-25 cm for small coin, 27-30 cm for big coin.

Indication: sound (headphones), LED

Power: 12V,

Reverse polarity protection

Low battery indication

Consumption: 60-80 mА

Dimensions of PCB: 99 x 71 mm
