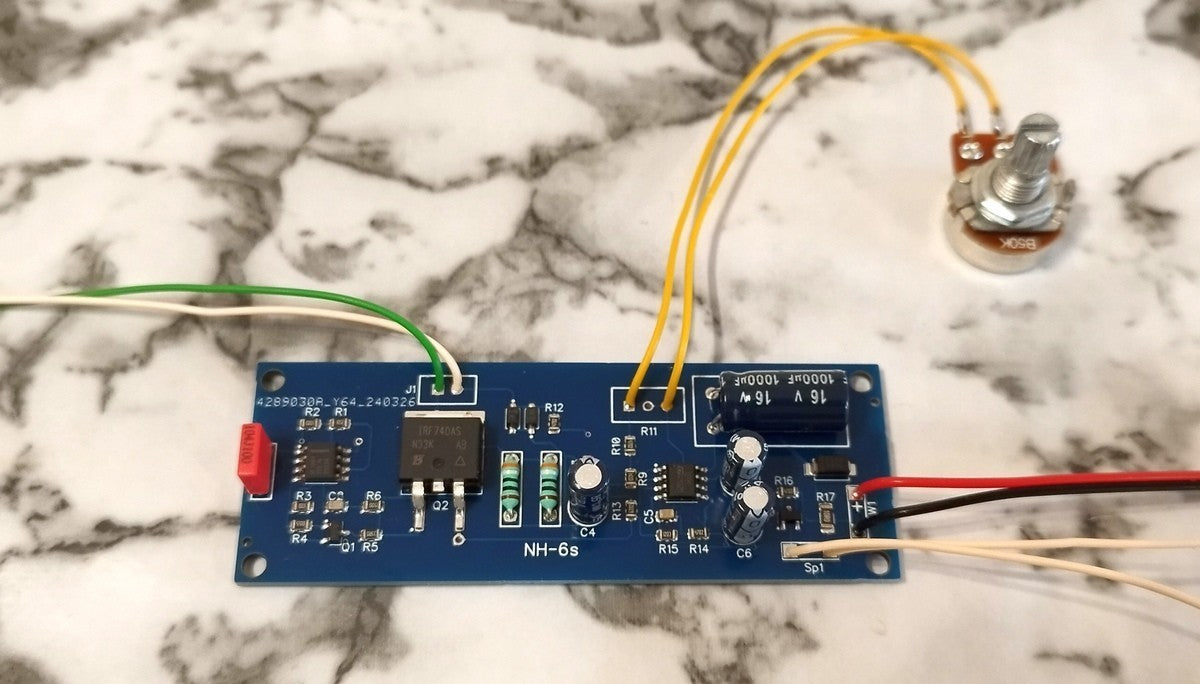

PI metal detector (NH-6s project)

Attention! This is not a real device - only project for direct manufacturing (PCB and assembling)

After purchasing this product, the ZIP of the project files will be send to your email within up to 24 hours.

You can purchase the OPTIONS (please select):

 - PROJECT FILES - All needed files for creating the PCB and assembling: Gerber, Drill, BOM, Pick and Place, schematic, List of the components, Short manual.

 - PROJECT FILES + EDITABLE FILES - all project files + editable files for making changes in the schematic and PCB (DipTrace format)

Pulse induction metal detector

Model: NH-6s

Type of the components: SMD

Number of layers: 2

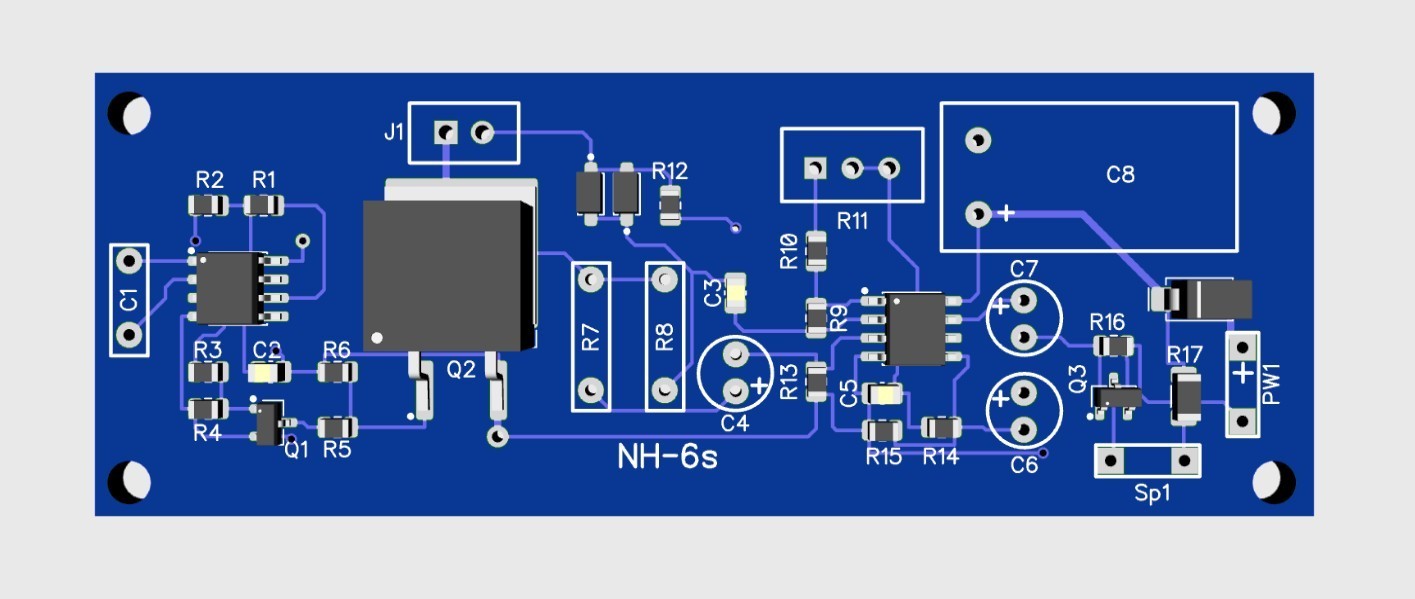

Dimension of the PCB: 84 x 31 mm

The ZIP file contain files:

Gerber

Drill

BOM

Pick and Place

High resolution schematic

List of components

Short manual

PCB files for printing (top and bottom)

__________________________________

Characteristics

Extremely easy to use Pulse induction metal detector, operating in static mode (non motion). Very suitable for search on the beach, land or under water. Despite its simplicity, the device has a good sensitivity.

Model: NH-6s

Principle: PI (Pulse Induction)

Mode: the detector operates in static mode - no need to move it when search.

Indication: sound

Search coil: description in the manual

Power supply: 12 V

Consumption: 40 mA

Dimensions of the PCB: 84 x 31 mm
