PI metal detector (NH-6s)

Extremely easy to use Pulse induction metal detector, operating in static mode (non motion). Very suitable for search on the beach, land or under water. Despite its simplicity, the device has a good sensitivity.

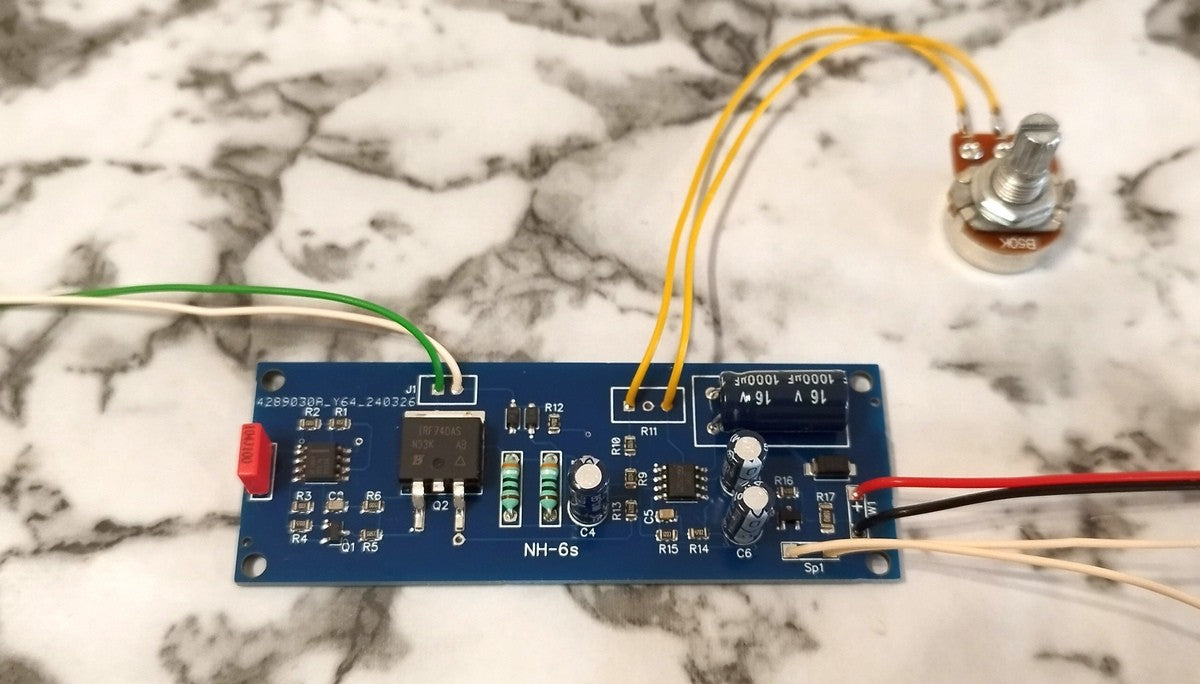

ASSEMLED AND TESTED BOARD

Specifications:

Model: NH-6s

Principle: PI (Pulse Induction)

Mode: the detector operates in static mode - no need to move it when search.

Indication: sound, (speaker not included)

Search coil: You can buy it from the site. Also you can do it yourself (description in the manual).

Sensitivity: 20 cm for small coin, 27 cm for big coin.

Power supply: 12 V

Consumption: 40 mA

Board size: 84 х 31 mm
