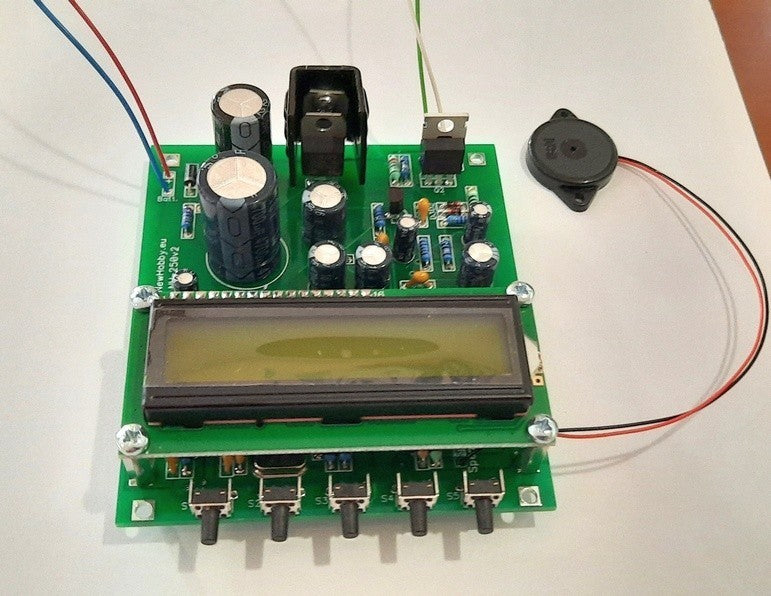

PI metal detector (NH-250 Project)

Attention! This is not a real device - only project for direct manufacturing (PCB and assembling)

After purchasing this product, the ZIP of the project files will be send to your email within up to 12 hours (normally 1-2 hours).

Pulse induction metal detector

Model: NH-250

Version 1 and 2 are included. The different between versions is only design of the PCB.

Type of the components: THT

Number of layers: 2

Dimension of the PCB: 84 x 97 mm

The ZIP file contain аll needed files for creating the PCB and assembling:

Gerber

Drill

BOM

Pick and Place

High resolution schematic

List of components

Short manual

PCB files for printing (top and bottom)

____________________________

Low reaction for stones, consists iron and ferrous oxides

Possibility to use small, normal and big coils

Easy mounting in a box

You can use this metal detector for:

- General purpose metal detector

- Searching on the beach

- Underwater metal detector

- Searching meteorites

- Searching gold (nugget)

- Detector for deep searching

Characteristics:

Principle: Pulse Induction

Mode: non-motion

Discrimination

Search coil: description in the manual

Indication: LCD display, sound

Ground compensation

Power: 18V,  reverse polarity protection

Low battery alarm

Consumption: 140 mА

Dimensions of PCB: 84 x 97 mm
