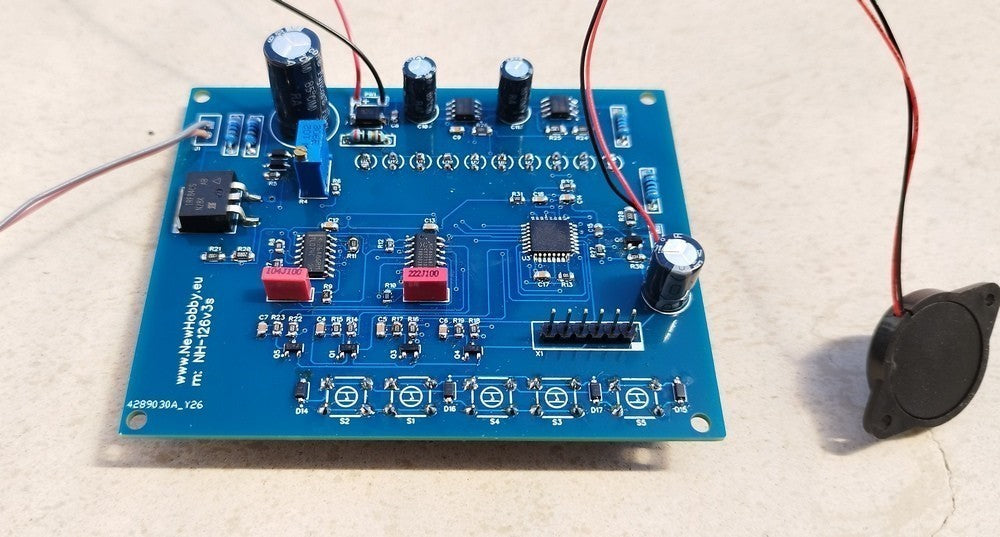

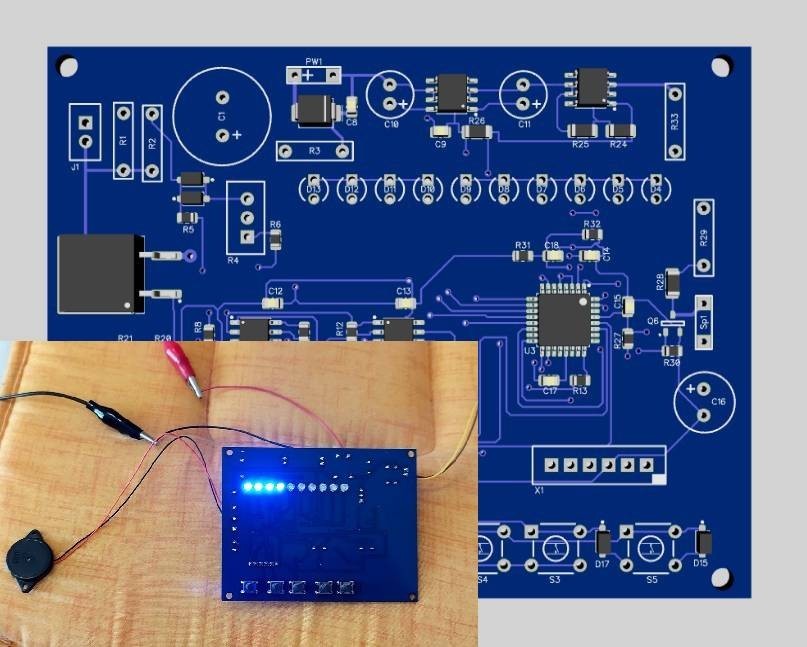

PI metal detector (NH-126s Project)

Attention! This is not a real device - only project for direct manufacturing (PCB and assembling)

After purchasing this product, the ZIP of the project files will be send to your email within up to 24 hours.

You can purchase the OPTIONS (please select):

 - PROJECT FILES - All needed files for creating the PCB and assembling: Gerber, Drill, BOM, Pick and Place, schematic, List of the components, Short manual.

 - PROJECT FILES + EDITABLE FILES - all project files + editable files for making changes in the schematic and PCB (DipTrace format)

Pulse induction metal detector

Type of the components: SMD

Number of layers: 2

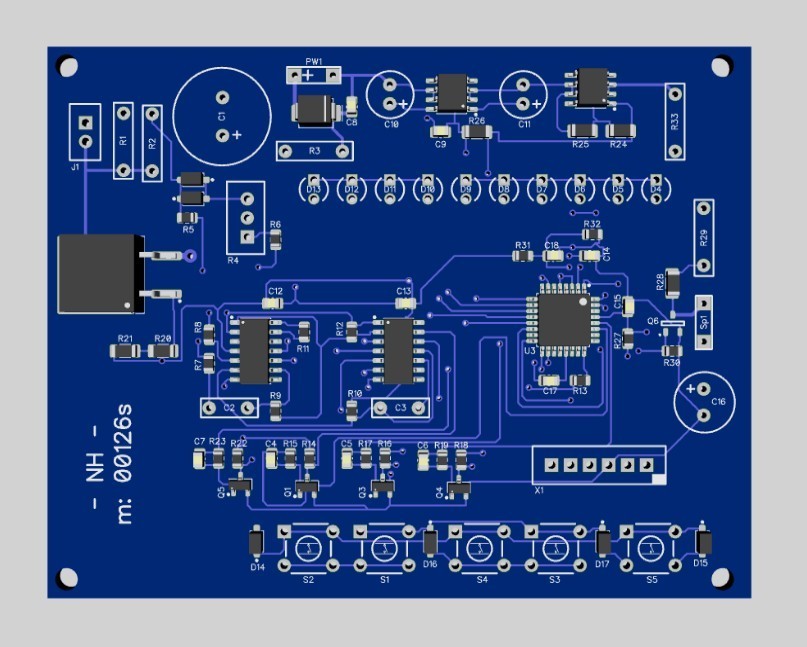

Dimension of the PCB: 94 x 74 mm

The ZIP file contain files:

Gerber

Drill

BOM

Pick and Place

High resolution schematic

List of components

Short manual

PCB files for printing (top and bottom)

____________________________________

Low reaction for stones, consist iron and ferrous oxides

Possibility to use small, normal and big coils.

You can use it for:

  - General purpose metal detector

  - Searching on the beach

  - Underwater metal detector

  - Searching meteorites

  - Searching gold (nugget)

  - Detector for deep searching

Characteristics:

Model: NH-126s (00126s)

Principle: Pulse induction

Mode: non-motion

Search coil:description in the manual

Sensitivity: 25 cm for small coin, 30 cm for big coin.

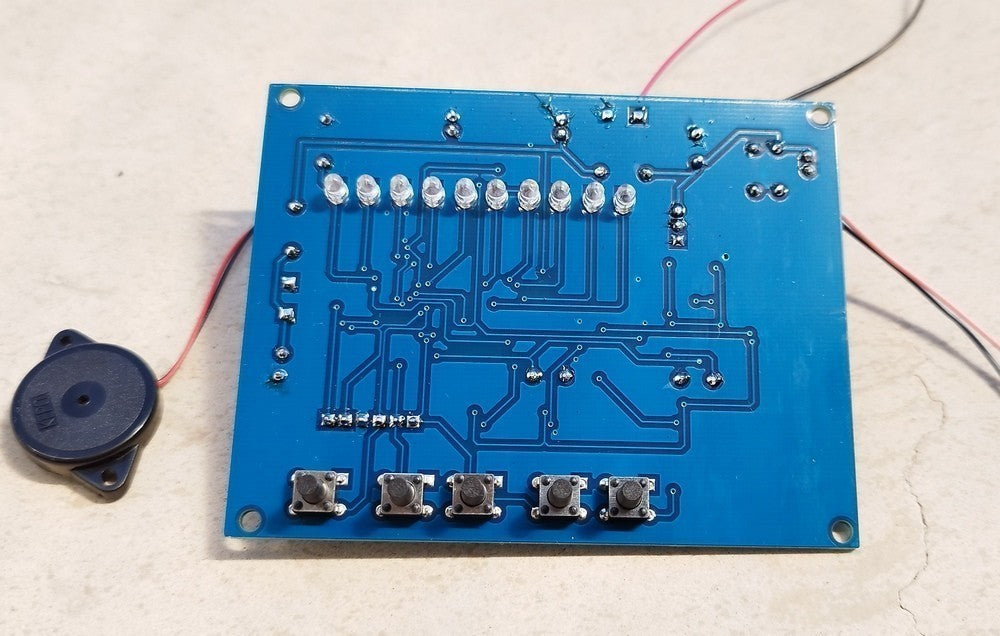

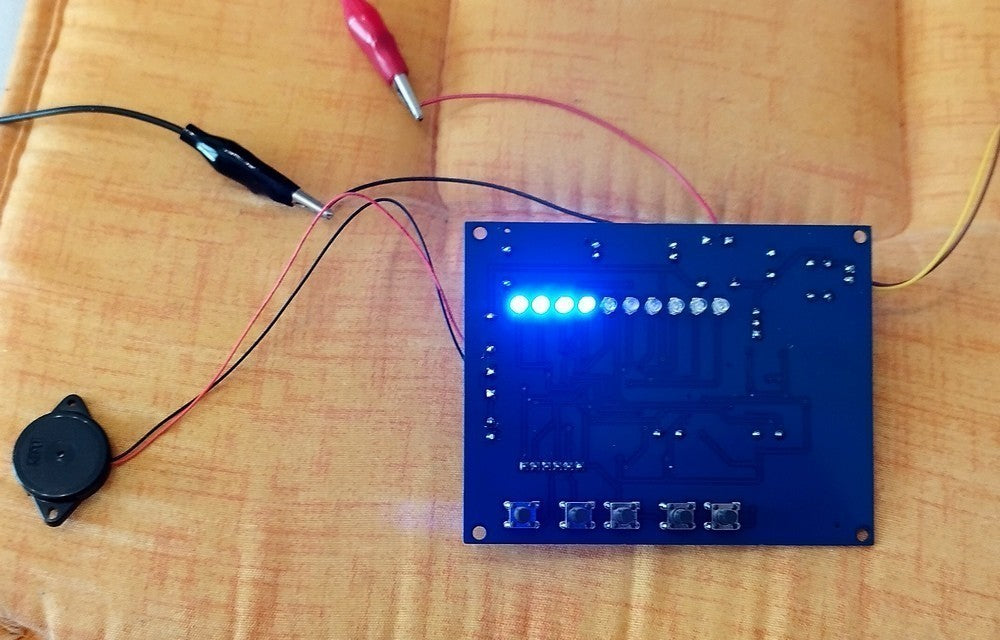

Indication: sound, 10 LEDs

Power: 12V

Consumption: 65-75 mА

Dimensions of PCB: 94 x 74 mm
