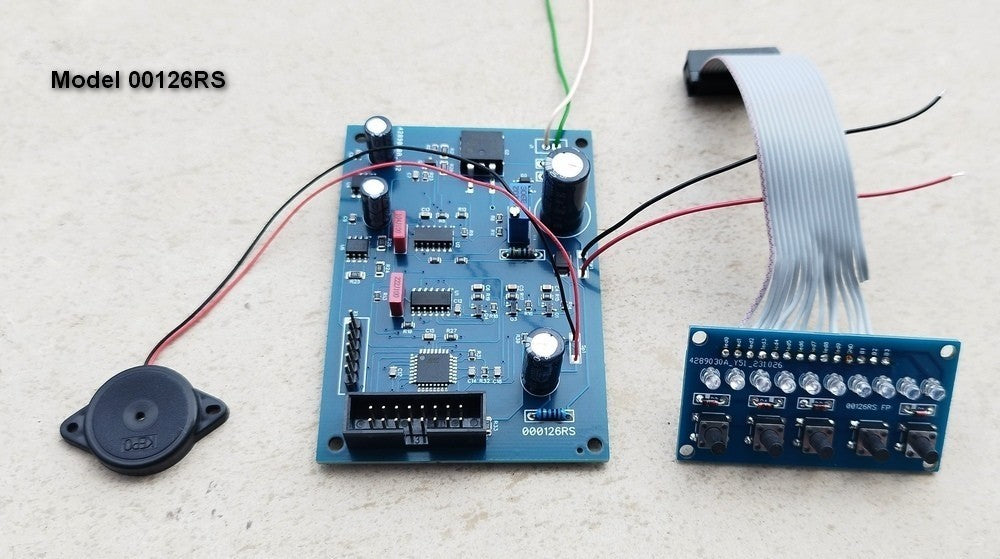

PI metal detector (NH-126RS Project)

Attention! This is not a real device - only project for direct manufacturing (PCB and assembling)

After purchasing this product, the ZIP of the project files will be send to your email within up to 12 hours (normally 1-2 hours).

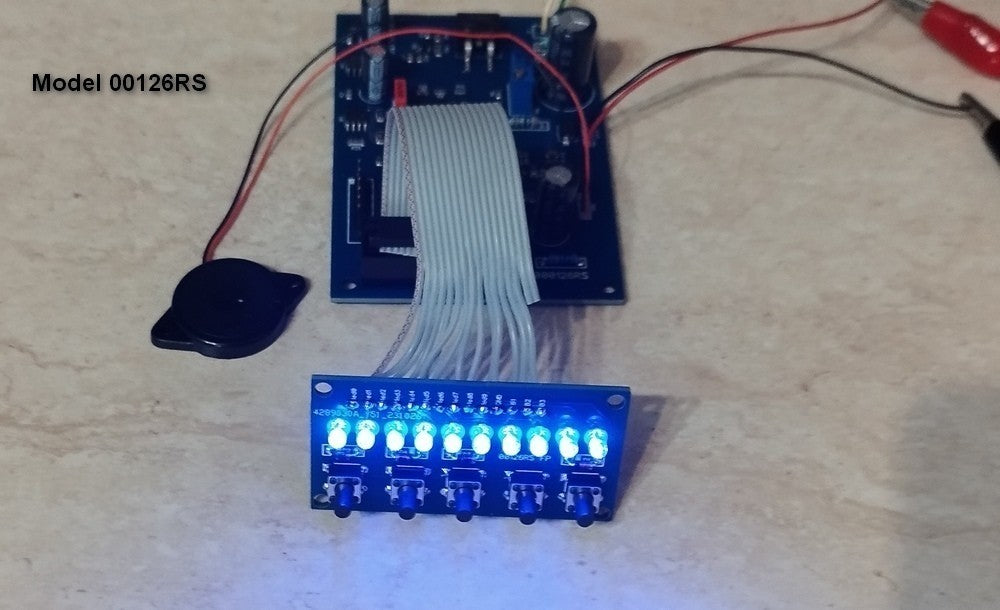

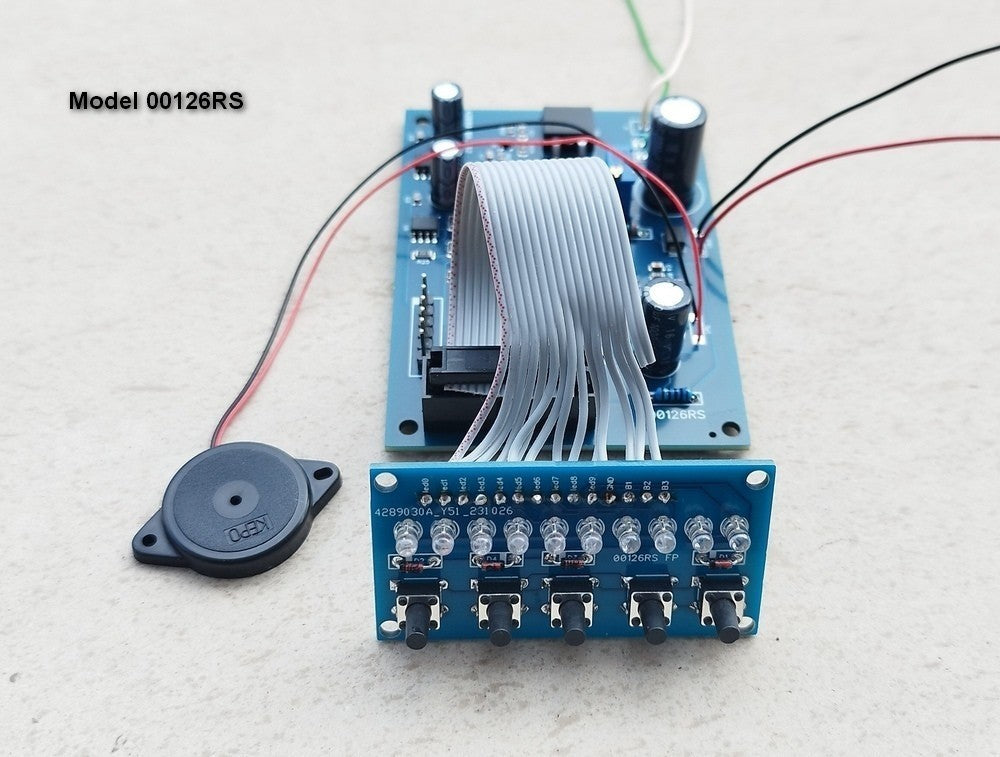

Pulse induction metal detector

Model: NH-126RS (00126RS)

Type of the components: SMD

Number of layers: 2

PCB size:

   - Main board: 85 x 60 mm

   - Controls panel: 56 x 29 mm

The ZIP file contain аll needed files for creating the PCB and assembling:

Gerber

Drill

BOM

Pick and Place

High resolution schematic

List of components

Short manual

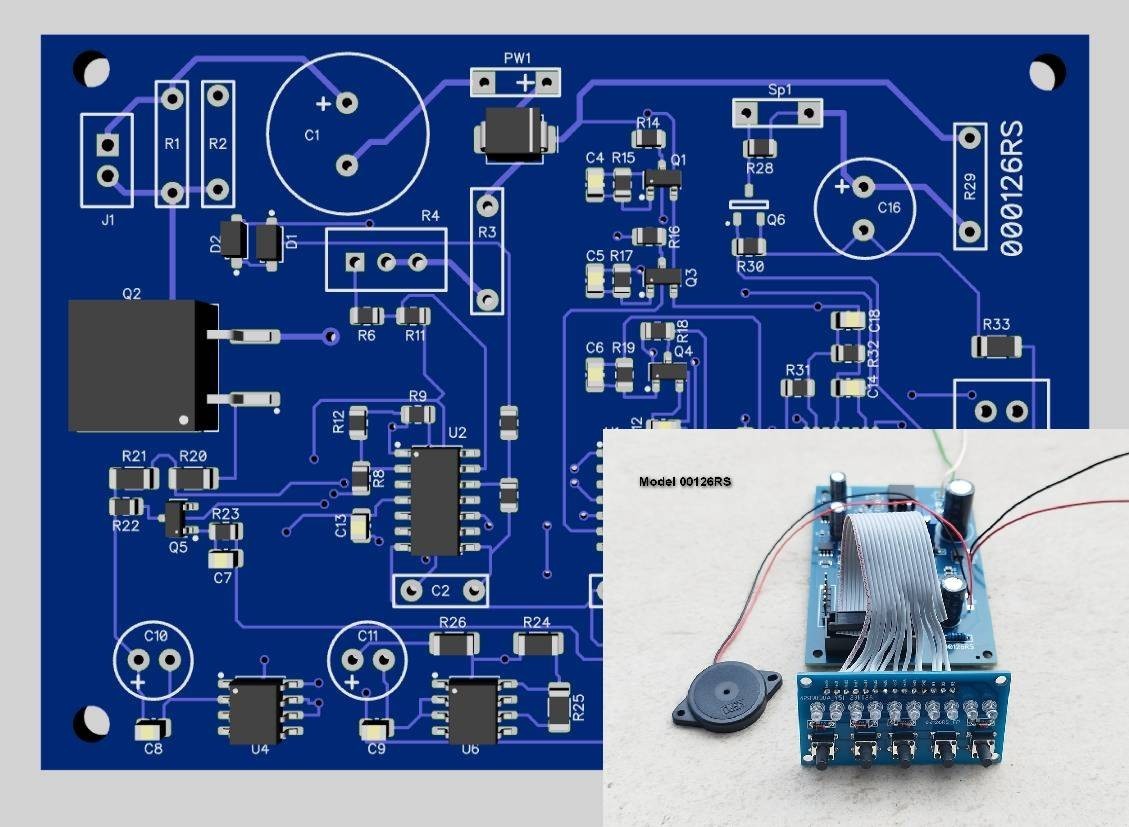

PCB files for printing (top and bottom)

____________________________________

Low reaction for stones, consist iron and ferrous oxides

Possibility to use small, normal and big coils.

You can use it for:

  - General purpose metal detector

  - Searching on the beach

  - Underwater metal detector

  - Searching meteorites

  - Searching gold (nugget)

  - Detector for deep searching

Characteristics:

Model: NH-126RS (00126RS)

Principle: Pulse induction

Mode: non-motion

Search coil: description in manual

Sensitivity: 25 cm for small coin, 30 cm for big coin.

Indication: sound, 10 LEDs

Power: 12V

Consumption: 65-75 mА

PCB size:

   - Main board: 85 x 60 mm

   - Controls panel: 56 x 29 mm
