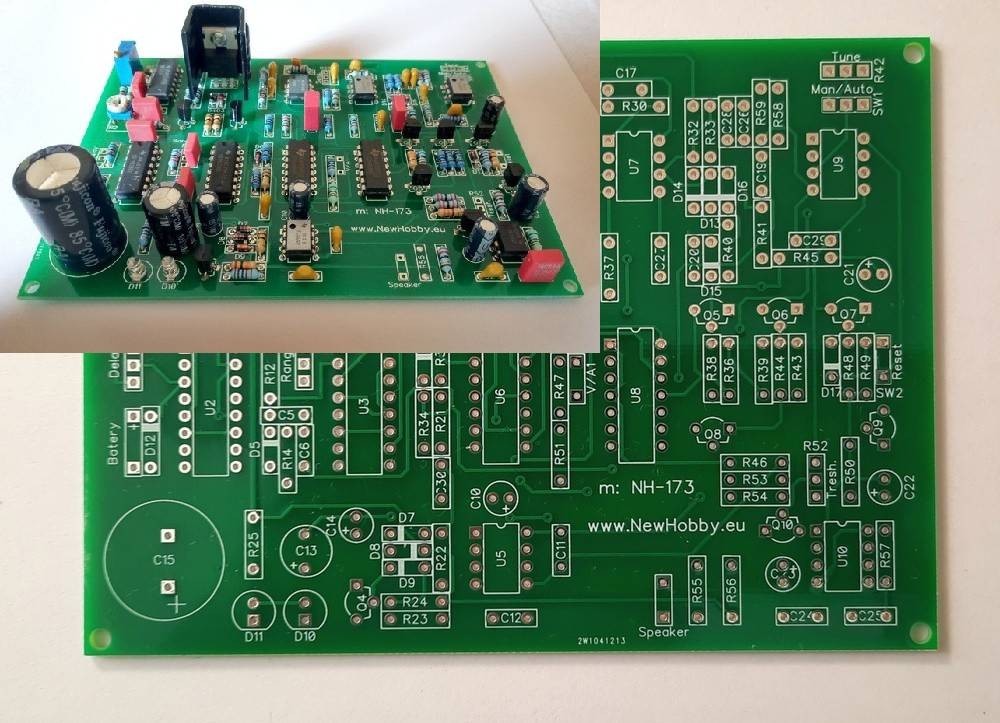

PI detector for deep searching (NH-173 Project)

Attention! This is not a real device - only project for direct manufacturing (PCB and assembling)

After purchasing this product, the ZIP of the project files will be send to your email within up to 12 hours (normally 1-2 hours).

Pulse induction metal detector

Model: NH-173

Type of the components: THT

Number of layers: 2

Dimension of the PCB: 127 x 91 mm

The ZIP file contain аll needed files for creating the PCB and assembling:

Gerber

Drill

BOM

Pick and Place

High resolution schematic

List of components

Short manual

PCB files for printing (top and bottom)

____________________________________________

This detector work stable with various coil diameter - from 10 cm to 1x1 m

Only 3 potentiometers

Low reaction for stones, what consists iron and ferrous oxides

You can use it for:

  - Deep searching (with big coil or frame)

  - General purpose metal detector

  - Searching on the beach

  - Searching meteorites

  - Searching gold (nugget)

Characteristics:

Model: NH-173

Mode:non-motion

Manual and Auto Threshold

Search coil: description in th emanual

Indication: sound

Low battery indication

Power: 12V

Reverse power protection

Consumption: ~140 mА

Dimensions of PCB: 127 x 92 mm
