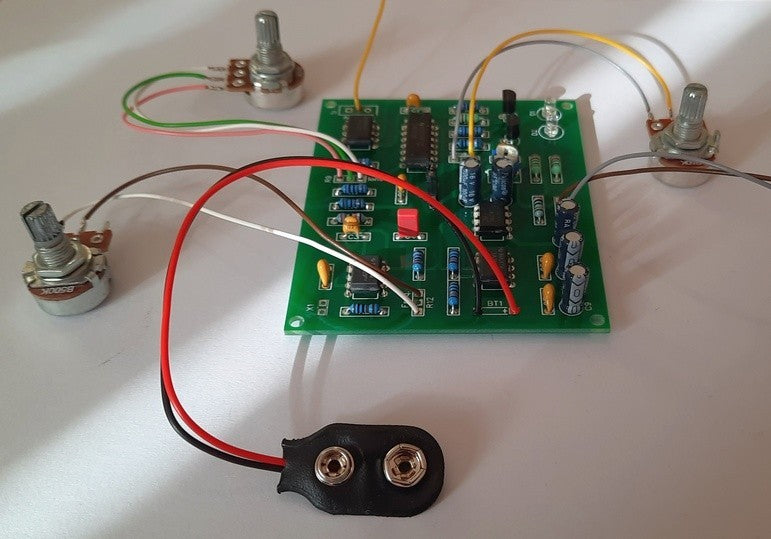

Ion detector (NH-195v2 Project)

Attention! This is not a real device - only project for direct manufacturing (PCB and assembling)

After purchasing this product, the ZIP of the project files will be send to your email within up to 12 hours (normally 1-2 hours).

Model: NH-195v2

Type of the components: THT

Number of layers: 2

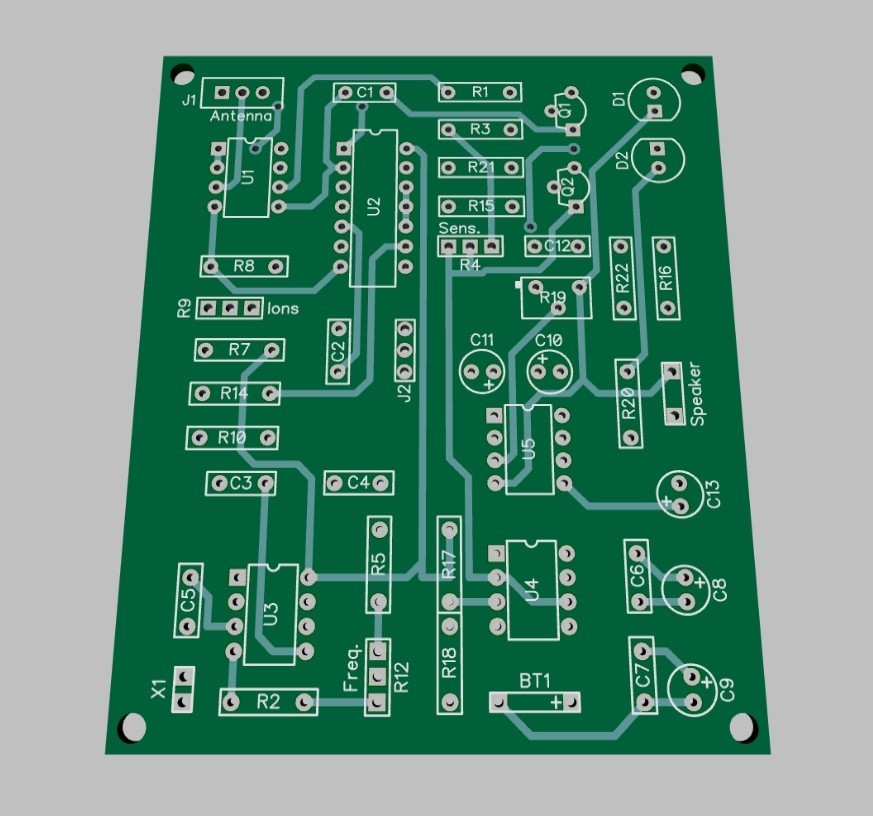

Dimension of the PCB: 69 x 81 mm

The ZIP file contain аll needed files for creating the PCB and assembling:

Gerber

Drill

BOM

Pick and Place

High resolution schematic

List of components

Short manual

PCB files for printing (top and bottom)

___________________________

The device is a sensitive indicator of changes in the electric field caused by anomalies in the ground,  cavities, different mineralization, availability metallic objects, ionizing radiation, etc. Device does not respond directly to metal objects, but only the change of the electric field caused by the mentioned reasons.

Characteristics

Features:

Model: NH-195, Version 2

Indication:

   - LEDs for positive and negative ions

   - Sound (speaker or headphone, not included)

Power: 9V

Consumption: 20-40 mA

Dimensions of the board: 79 x 67 mm
