Electrostatic/Magnetic field detector (UF-3 SMD)

Attention! This is not a real device - only project for direct manufacturing (PCB and assembling)

After purchasing this product, the ZIP of the project files will be send to your email within up to 12 hours (normally 1-2 hours).

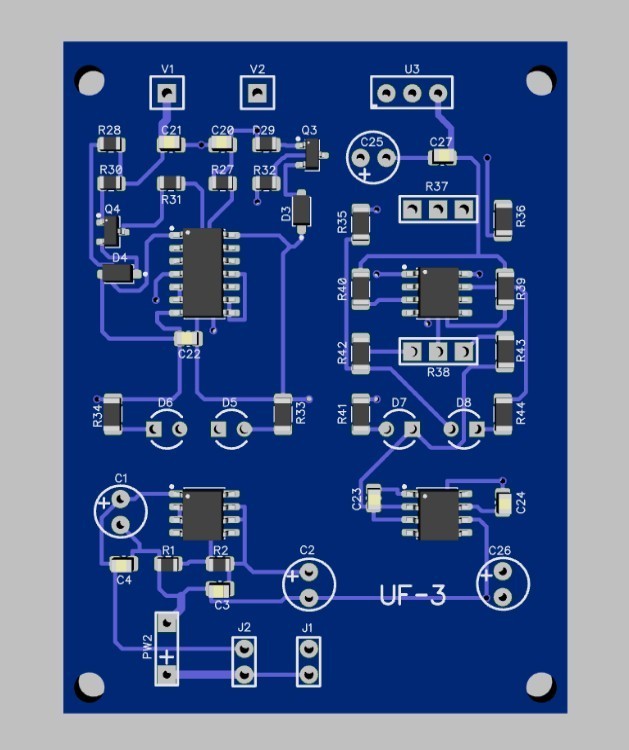

Type of the components: SMD

Number of layers: 2

Dimension of the PCB: 50 x 66 mm

The ZIP file contain аll needed files for creating the PCB and assembling:

Gerber

Drill

BOM

Pick and Place

High resolution schematic

List of components

Short manual

PCB files for printing (top and bottom)

___________________________

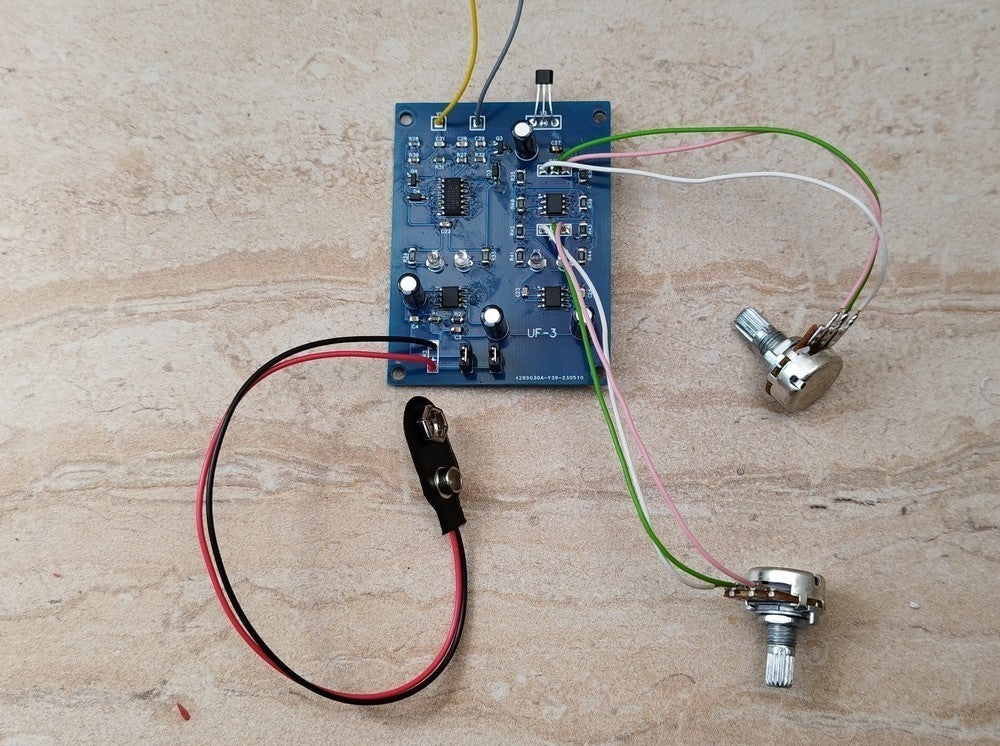

This board consist two detectors

   - Electrostatic detector

   - Magnetic field detector

Model: UF-3

Power: 9V battery

Dimensions of the board: 50 x 66 mm

Features:

Electrostatic detector

   - Indication: LEDs for positive and negative eletrostatic field

   - Antennas - 2 telescopic (NOT included)

   - Not react to the EMF

Magnetic field detector

   - Indication: LEDs for North/South magnetic pole

   - 2 potentiometers for independent ajusting the threshold of the North/South magnetic pole indication
