Electric fence for perimeter protection (Project)

Project for direct manufacturing (PCB and assembling)

After purchasing this product, the ZIP of the project files will be send to your email within up to 12 hours (normally 1-2 hours).

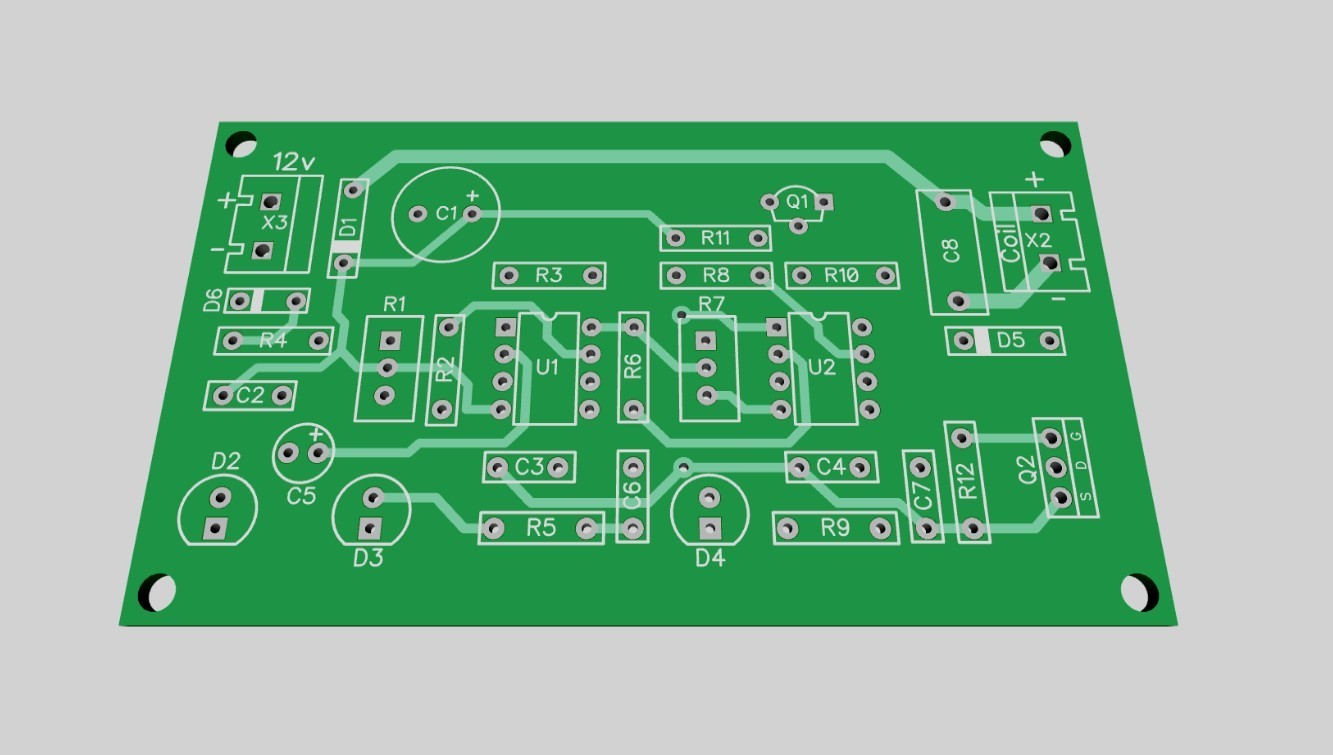

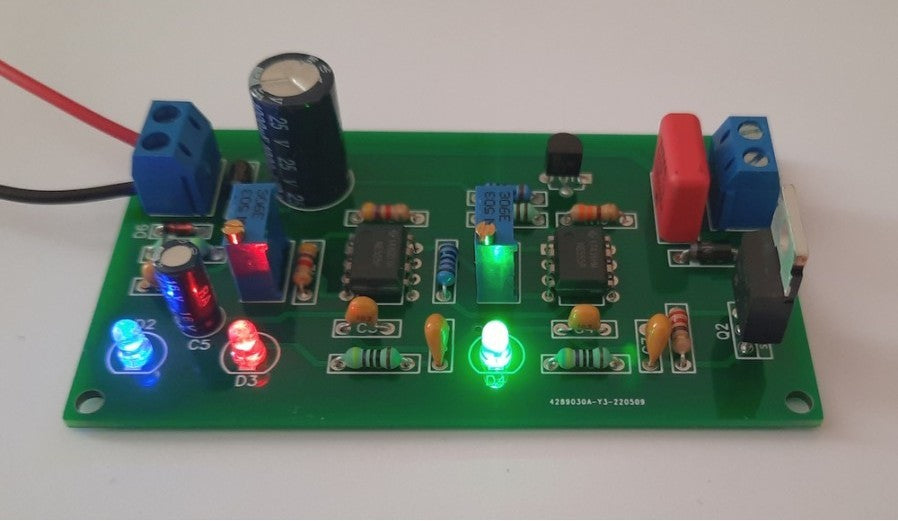

Electric fence for perimeter protection (controller)

Model: 00340v2

Type of the components: THT

Number of layers: 2

Dimension of the PCB: 84 x 47 mm

The ZIP file contain аll needed files for creating the PCB and assembling:

Gerber

Drill

BOM

Pick and Place

High resolution schematic

List of components

Short manual

PCB files for printing (top and bottom)

____________________________

Electric Fence for perimeter protection (controller)

ONLY AGAINST ANIMALS!

Characteristics:

The board no need any soldering

Power supply: 12V

Consumption (average): 100-250mA

Reverse polarity protection

Low voltage indication
