Bee venom collector controller (ver. NH-500s project)

Attention! This is not a real device - only project for direct manufacturing (PCB and assembling)

After purchasing this product, the ZIP of the project files will be send to your email within up to 24 hours.

You can purchase the OPTIONS (please select):

 - PROJECT FILES - All needed files for creating the PCB and assembling: Gerber, Drill, BOM, Pick and Place, schematic, List of the components, Short manual.

 - PROJECT FILES + EDITABLE FILES - all project files + editable files for making changes in the schematic and PCB (DipTrace format)

Model: NH-500s

Type of the components: SMD

Number of layers: 2

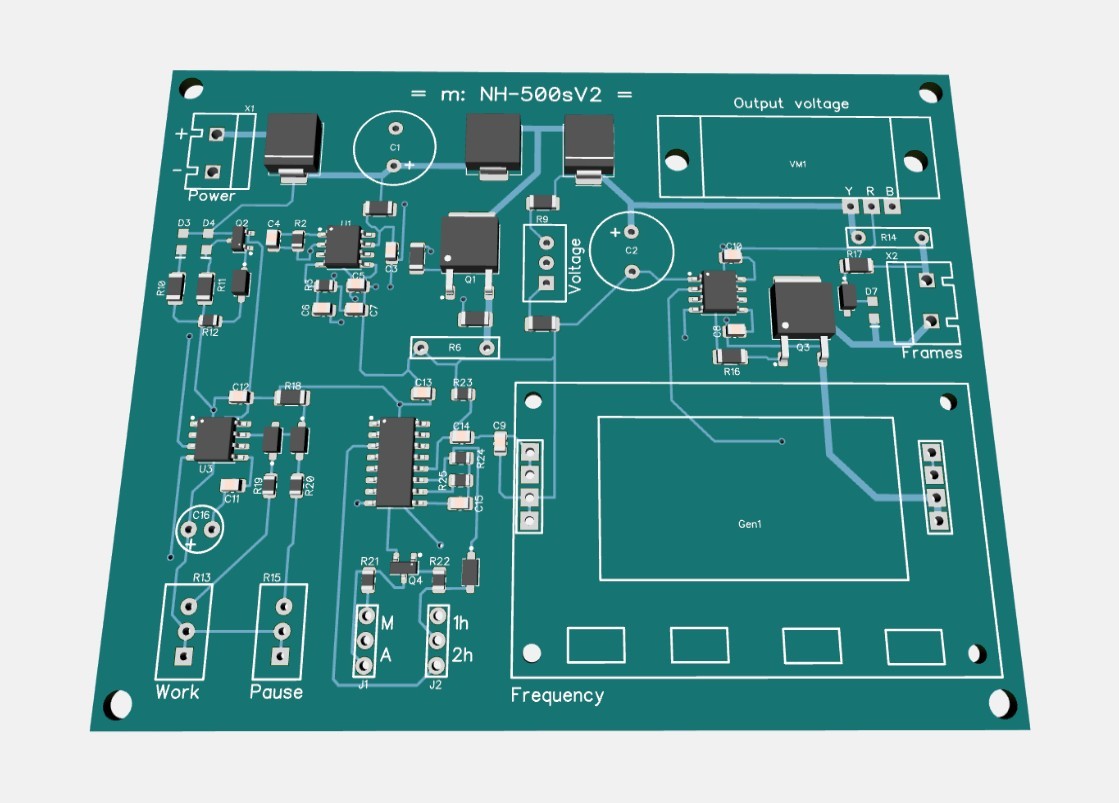

Dimension of the PCB: 98 x 78 mm

The ZIP file contain the files:

Gerber

Drill

BOM

Pick and Place

High resolution schematic

List of components

Short manual

_________________________________

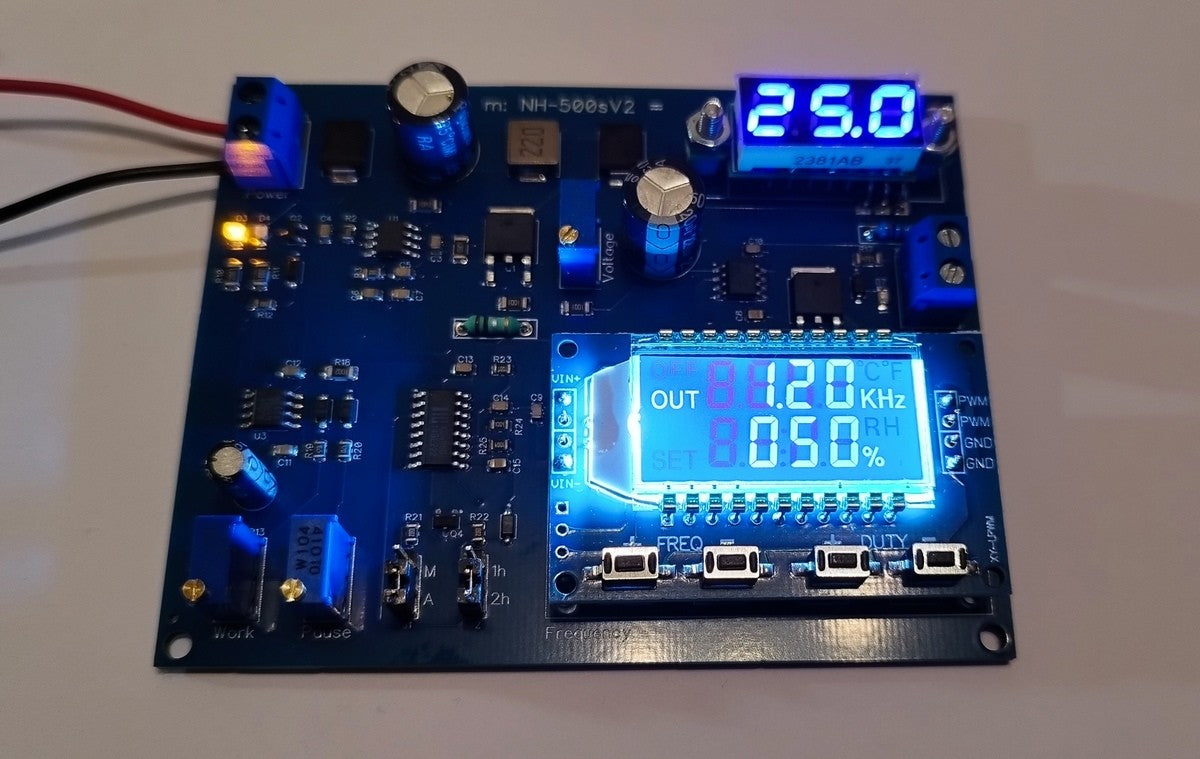

Device for collecting bee poison. Does not kill bees. Not dangerous for the humans. The board no need any soldering

Characteristics:

Model: NH-500s PRO

Power: 11 - 15V battery or power adapter

Connecting frames: up to 10

Adjusting output voltage + digital voltmeter (random color)

Adjusting output frequency + digital indicator

Ability to separetely adjusting the times of Work and Pause

Timer for OFF device after fixed time

Output protection

Reverse voltage protection

Low battery indication

Consumption: 80 mA

Dimension of the PCB: 98 x 78 mm
