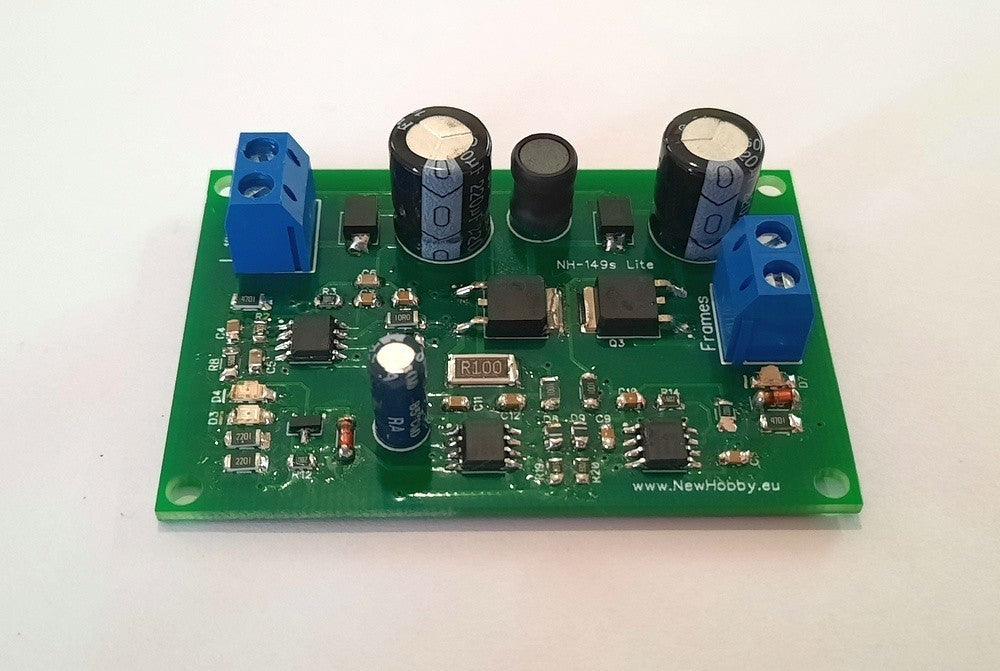

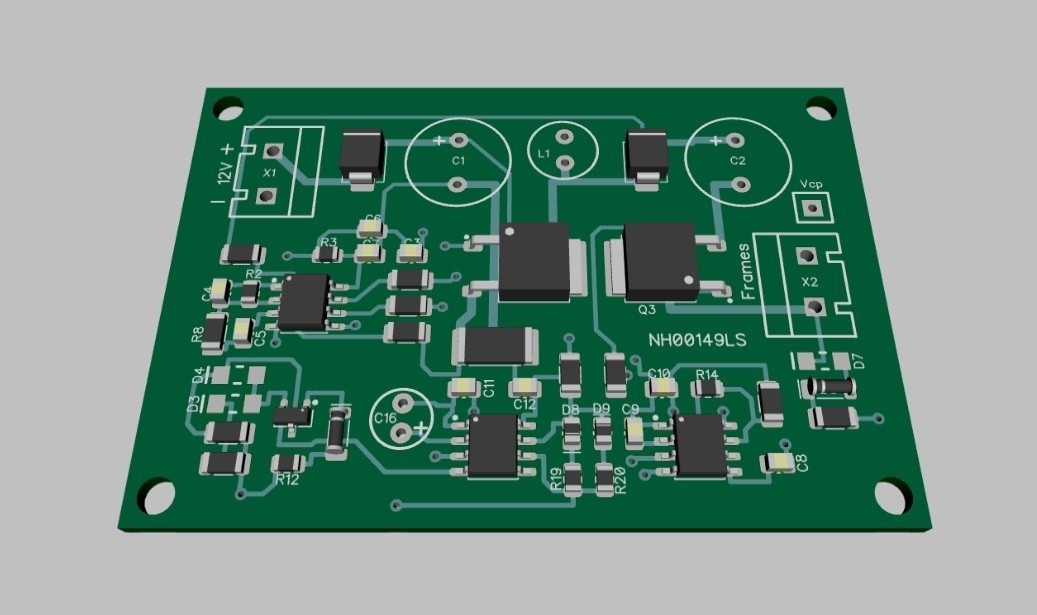

Bee venom collector controller (ver. Light, project), SMD

Attention! This is not a real device - only project for direct manufacturing (PCB and assembling)

After purchasing this product, the ZIP of the project files will be send to your email within up to 24 hours.

You can purchase the OPTIONS (please select):

 - PROJECT FILES - All needed files for creating the PCB and assembling: Gerber, Drill, BOM, Pick and Place, schematic, List of the components, Short manual.

 - PROJECT FILES + EDITABLE FILES - all project files + editable files for making changes in the schematic and PCB (DipTrace format)

Model: 00149LS

Type of the components: SMD

Number of layers: 2

Dimension of the PCB: 64 x 43 mm

The ZIP file contain the files:

Gerber

Drill

BOM

Pick and Place

High resolution schematic

List of components

Short manual

PCB files for printing (top and bottom)

______________________________

Device for collecting bee poison. Not kill the bees. Not dangerous for the humans. The board no need any soldering

NOTE: This device is a kit-board, Without collecting frames and their glasses.

Characteristics:

Power: 11 - 15V battery or power adapter

Connecting frames: up to 10

Adjusting output voltage: no (fixed)

Adjusting output frequency: no (fixed)

Timer for OFF device after fixed time: no

Reverse voltage protection

Low battery indication

Consumption: 80 mA

Dimension of the PCB: 64 x 43 mm
