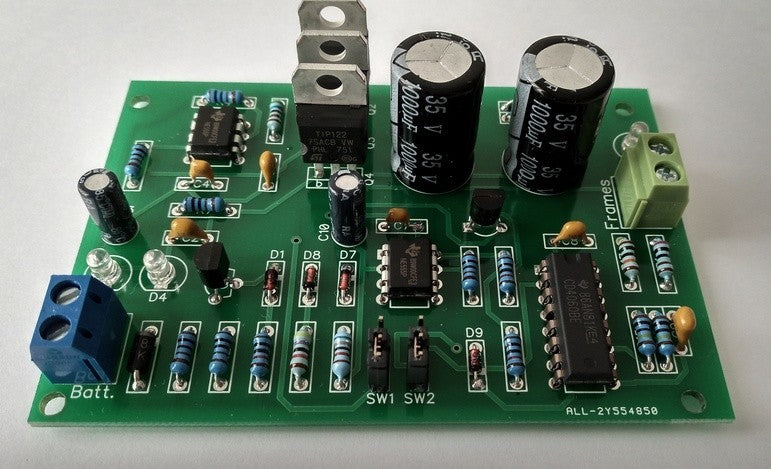

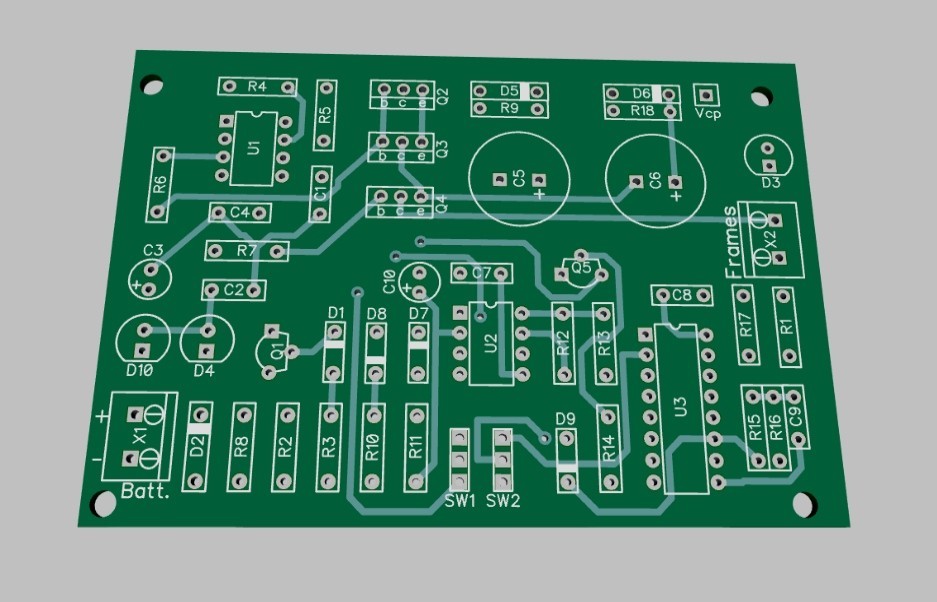

Bee venom collector controller (ver. F1, project)

Attention! This is not a real device - only project for direct manufacturing (PCB and assembling)

After purchasing this product, the ZIP of the project files will be send to your email within up to 12 hours (normally 1-2 hors).

Model: 00149F1 (NH-149F1)

Type of the components: THT

Number of layers: 2

Dimension of the PCB: 89 x 61 mm

The ZIP file contain аll needed files for creating the PCB and assembling:

Gerber

Drill

BOM

Pick and Place

High resolution schematic

List of components

Short manual

PCB files for printing (top and bottom)

_______________________

Device for collecting bee poison. Not kill the bees. Not dangerous for the humans. The board no need any soldering

Characteristics:

Power: 11 - 15V battery or power adapter

Connecting frames: up to 10

Adjusting output voltage: NO

Adjusting output frequency: NO

Timer for OFF devive after fixed time: yes

Reverse voltage protection

Low battery indication

Consumption: 80 mA

Dimension of the PCB: 89 x 61 mm
