Bee venom collector controller (ver. F1)

Device for collecting bee poison. Not kill the bees. Not dangerous for the humans. The board no need any soldering

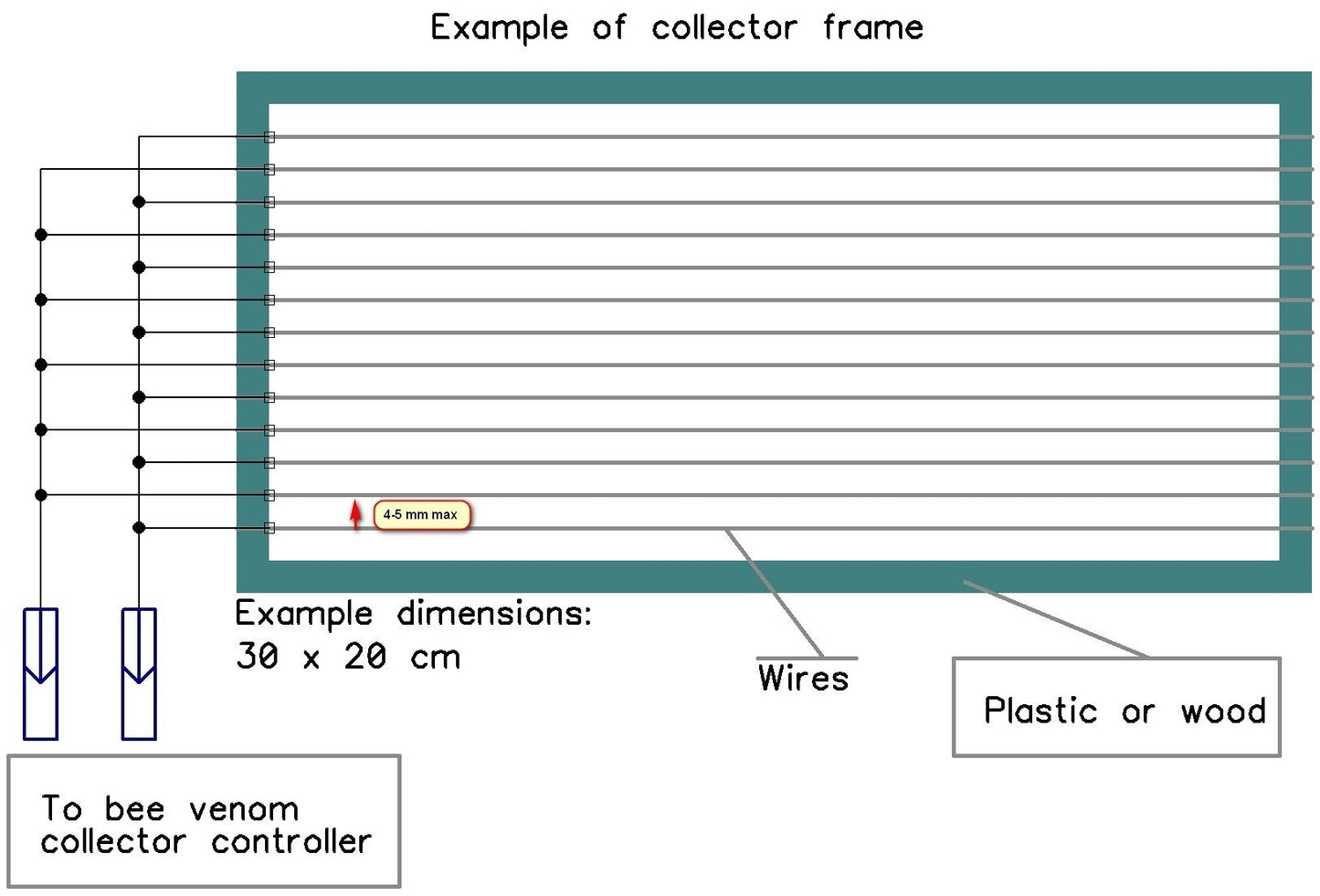

NOTE: This device is a kit-board, Without collecting frames and their glasses.

Characteristics:

Power: 11 - 15V battery or power adapter

Connecting frames: up to 10

Adjusting output voltage: NO

Adjusting output frequency: NO

Timer for OFF devive after fixed time: yes

Reverse voltage protection

Low battery indication

Consumption: 45mA

Dimension of the PCB: 89 x 61 mm
