Bee venom collector controller

Device for collecting bee poison. Does not kill be es. Not dangerous for the humans. The board no need any soldering

NOTE: This device is a kit-board, Without collecting frames and their glasses.

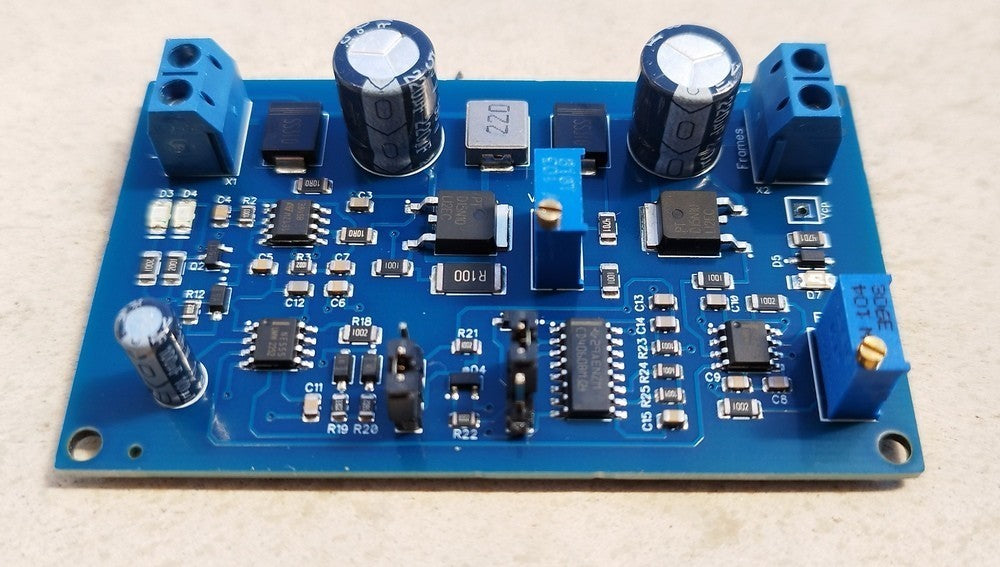

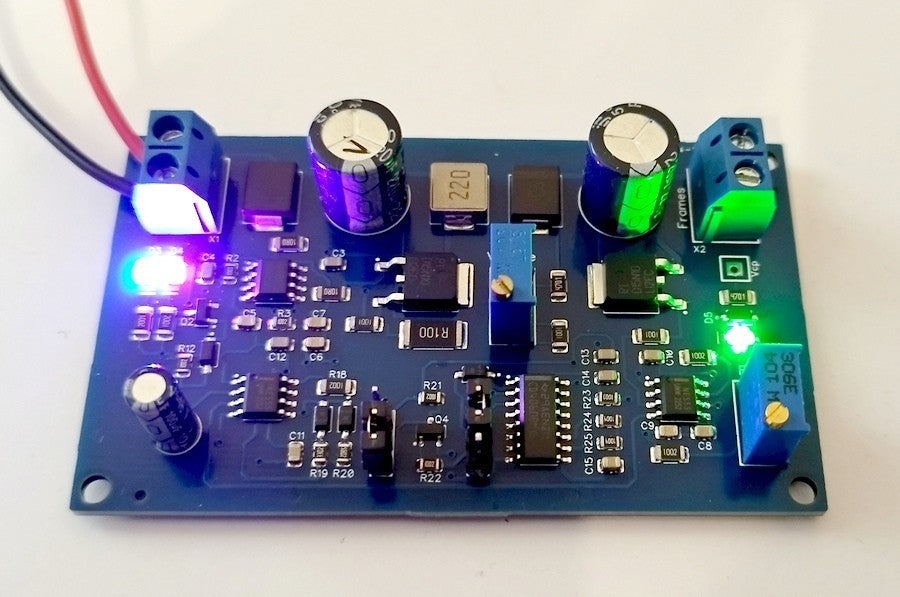

Assembled and adjusted board, ready for using.

Characteristics:

Power: 11 - 15V battery or power adapter

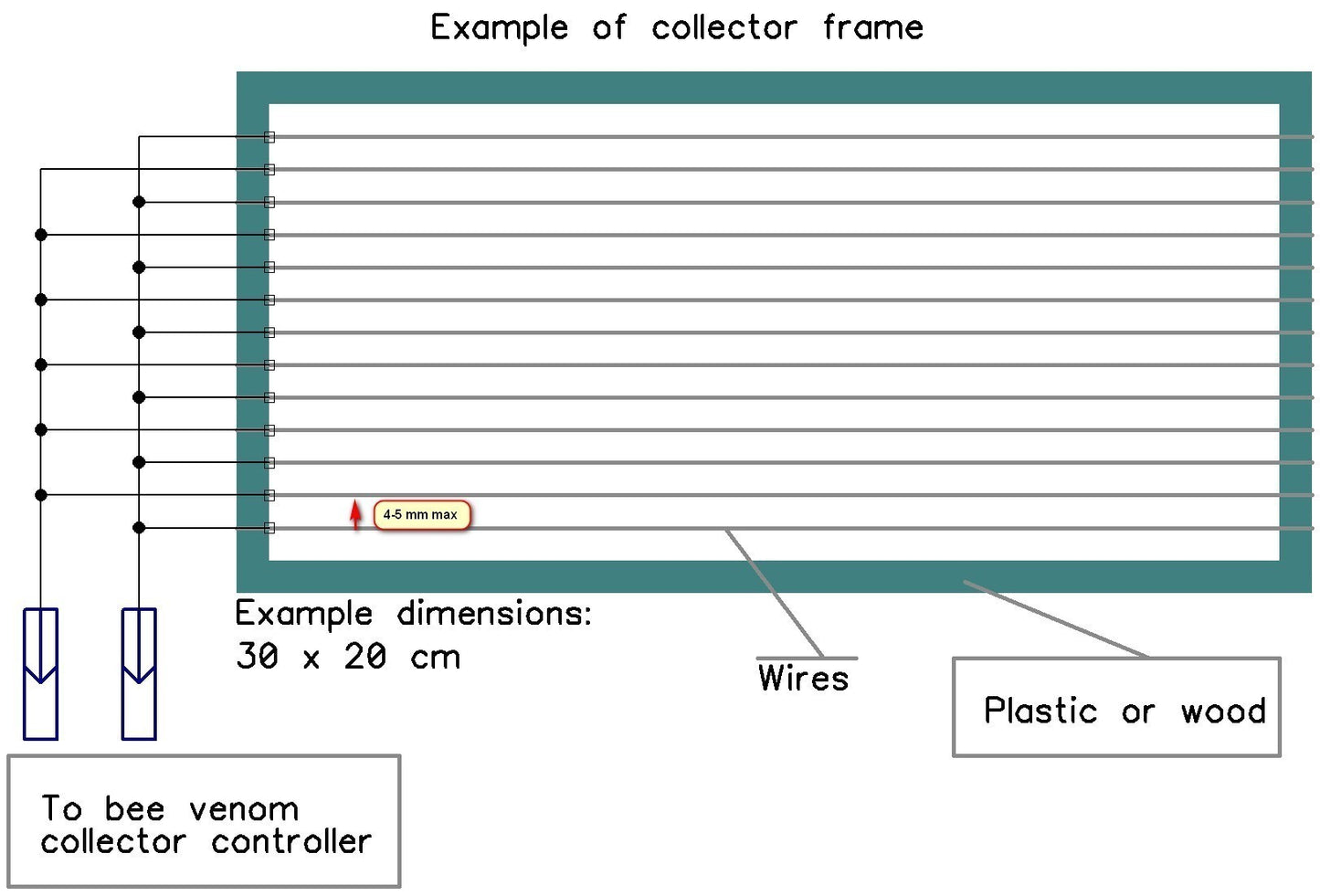

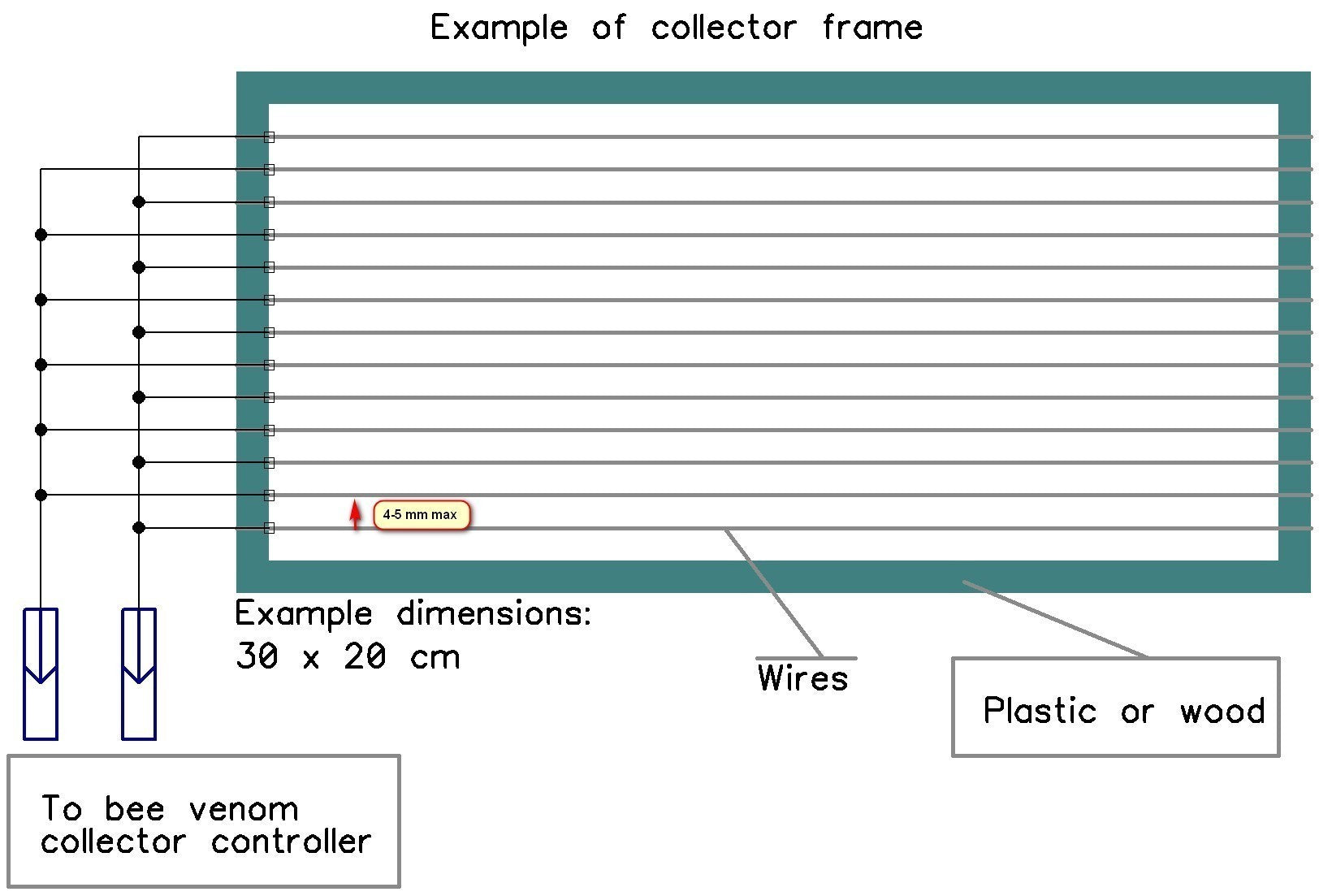

Connecting frames: up to 10

Adjusting output voltage: YES

Adjusting output frequency: YES

Timer for OFF device after fixed time: YES

Reverse voltage protection

Low battery indication

Consumption: 80 mA

Dimension of the PCB: 79 x 47 mm
