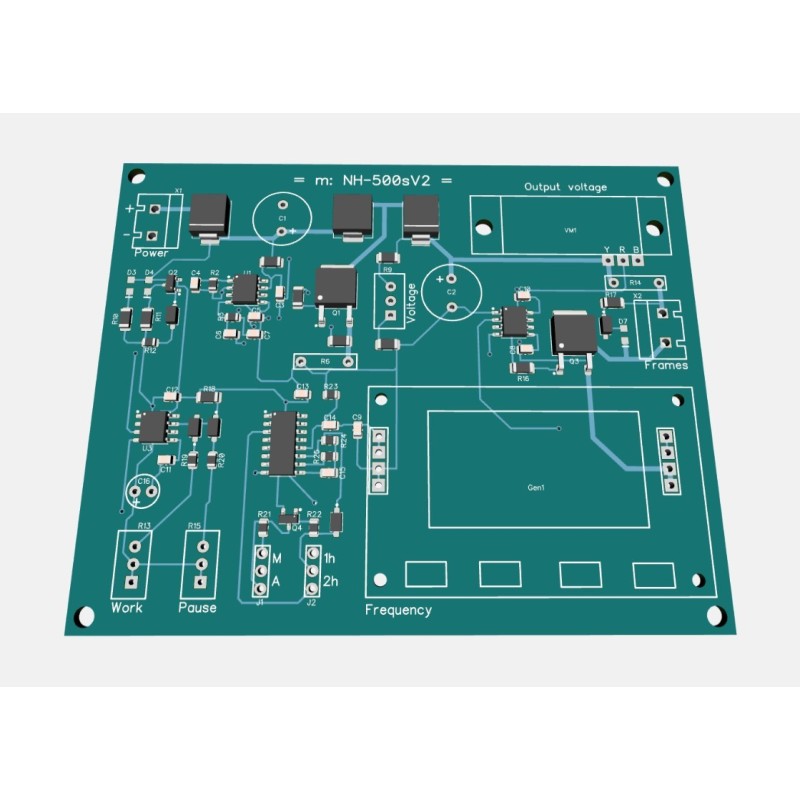

Bee venom collector controller (ver. NH500s PRO project)

Attention! This is not a real device - only project for direct manufacturing (PCB and assembling)

After purchasing this product, you will receive a download link on your email.

Model: NH500s Pro

Type of the components: SMD

Number of layers: 2

Dimension of the PCB: 98 x 78 mm

The downloadable ZIP file contain the files:

Gerber

Drill

BOM

Pick and Place

High resolution schematic

List of components

Short manual

_________________________________

Device for collecting bee poison. Does not kill bees. Not dangerous for the humans. The board no need any soldering

NEW VERSION. Now it can be adjusted without electronic measuring instruments.

Characteristics:

Model: NH-500s PRO

Power: 11 - 15V battery or power adapter

Connecting frames: up to 10

Adjusting output voltage + digital voltmeter (random color)

Adjusting output frequency + digital indicator

Ability to separetely adjusting the times of Work and Pause

Timer for OFF device after fixed time

Output protection

Reverse voltage protection

Low battery indication

Consumption: 80 mA

Dimension of the PCB: 98 x 78 mm
