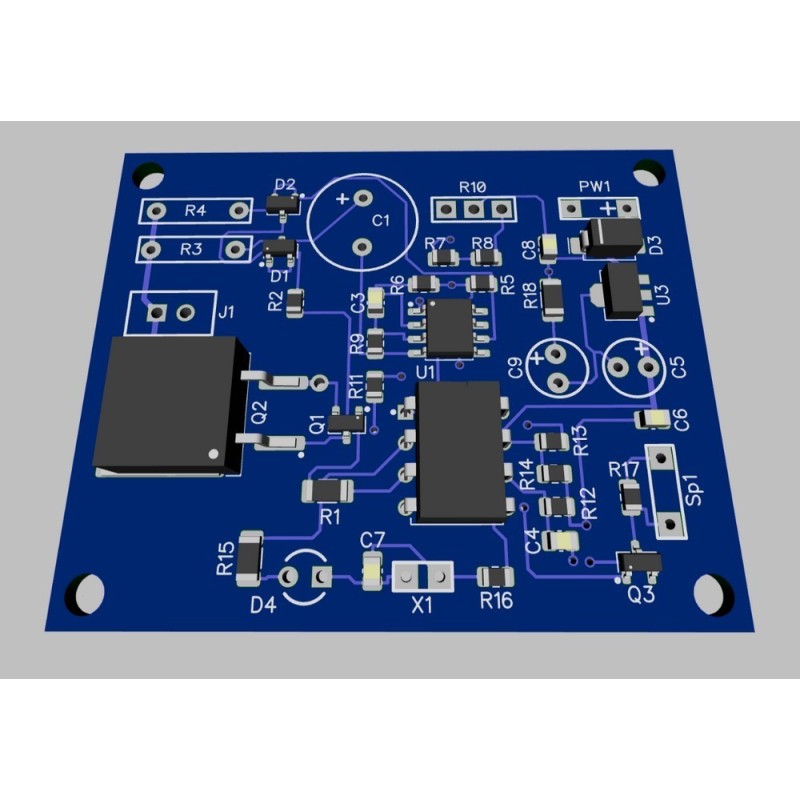

PI metal detector (00434 Project SMD)

Attention! This is not a real device - only project for direct manufacturing (PCB and assembling)

After purchasing this product, you will receive a download link on your email.

Pulse induction metal detector

Model: 00434

Assembled board can be purchased from the site www.NewHobby.eu

Type of the components: SMD

Number of layers: 2

Dimension of the PCB: 52 x 42 mm

The downloadable ZIP file contain files:

Gerber

Drill

BOM

Pick and Place

High resolution schematic

List of components

Short manual

PCB files for printing (top and bottom)

____________________________________

Specifications:

Model: 00434

Principle: PI (Pulse Induction)

Mode: "non-motion"

Indication: light (LED) and sound.

Search coil: description in the manual

Sensitivity: 17-20 cm for small coin, 25 cm for big coin, beer can 60 cm (depending of the adjustement of the threshold)

Power supply: 12 V

Reverse voltage protection

Consumption: 40 mA

Size of the board: 52 x 42 mm
