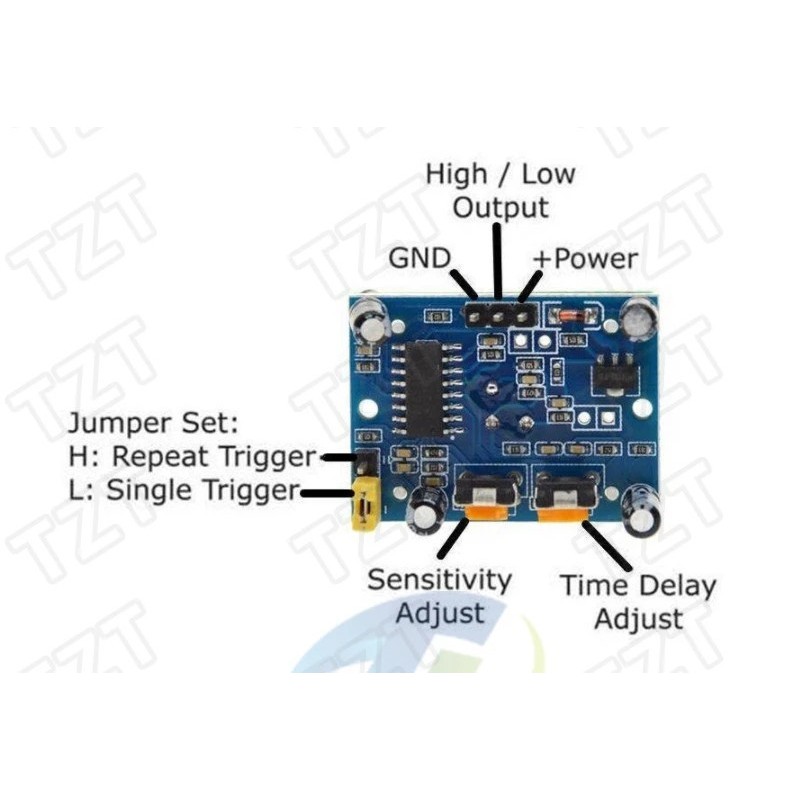

Mini PIR Motion Sensor

No tax


1. Weight:6g

2. Operating voltage range: DC4.5-20V

3. Static current: <60uA

4. Output level: high 3.3v / low 0v

5. Trigger: repeatable trigger (default)

6. Delay time: default 8S + -30% (can be customized range of a few tenths -

tens of minutes)

7. PCB Dimensions: 10 * 23mm

8. Induction angle: <100 degree cone angle

9. Induction distance: 3 meters

10. Working temperature: -20 - +80 degrees

11. Sensor lens dimensions: diameter: 10mm (default)

12. Automatic induction: to enter the sensing range of the output is high,

people leave the sensor range automatically delay off high, output low.

Ultra-small size.

13. Repeatable trigger: the sensor output high, the delay period, if there is

human activity in its sensing range, the output will remain high until people

leave after the high variable delay lOW (automatically extended sensor

module detects the human body after every activity a delay period, and the

last time an event is the starting point of the delay time).

14. Wide operating voltage range: the default operating voltage DC4.5V-20V.

15. Output high signal: easy docking and all kinds of circuits.
